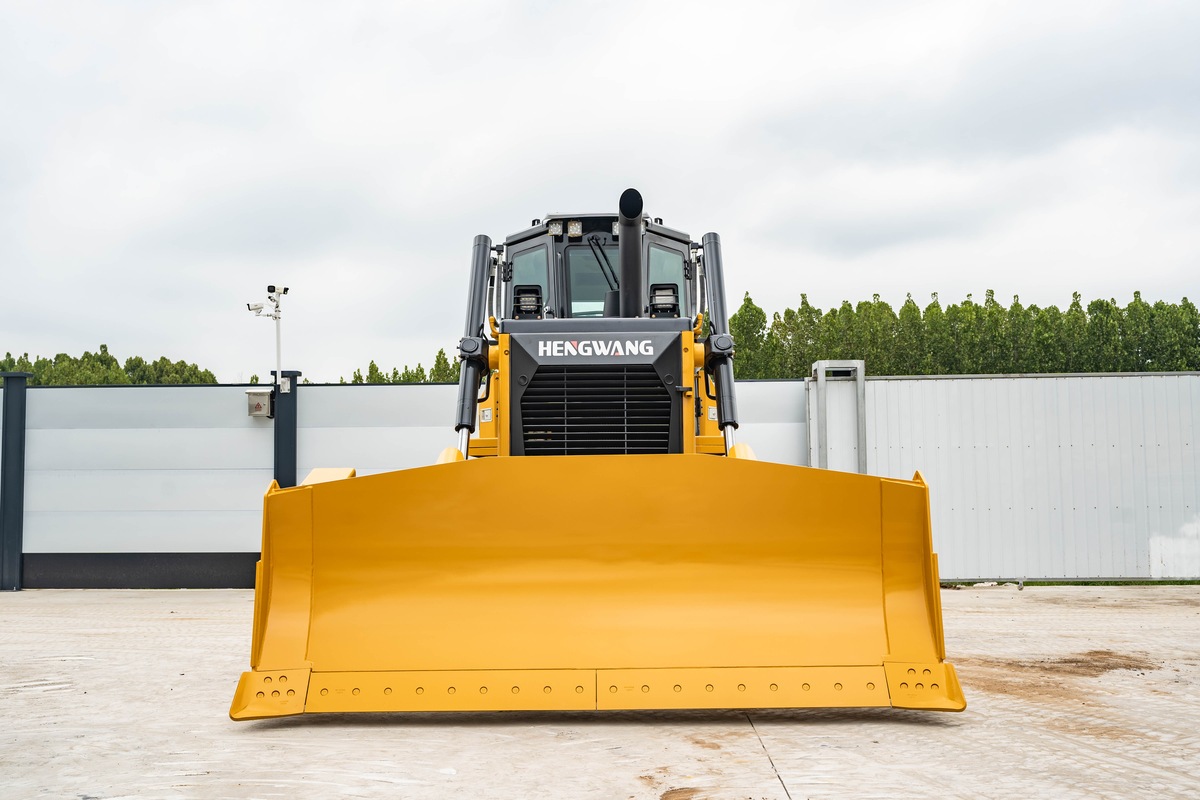

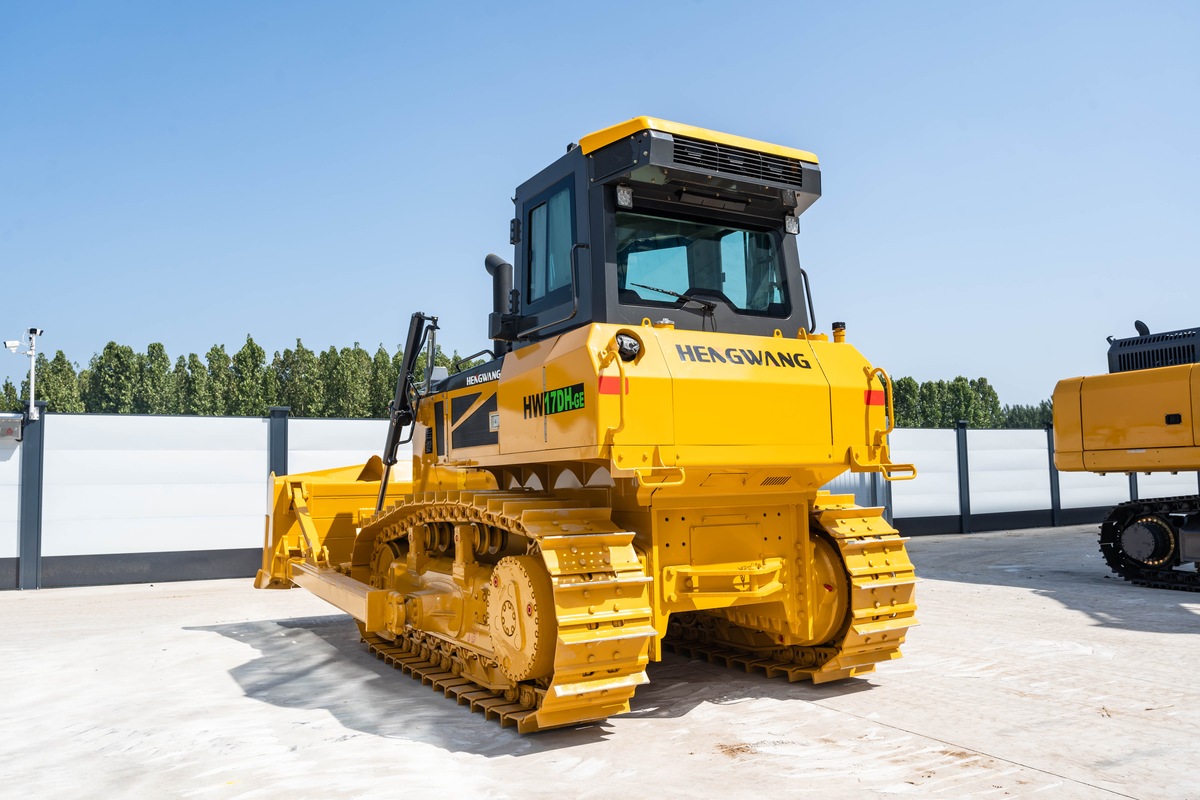

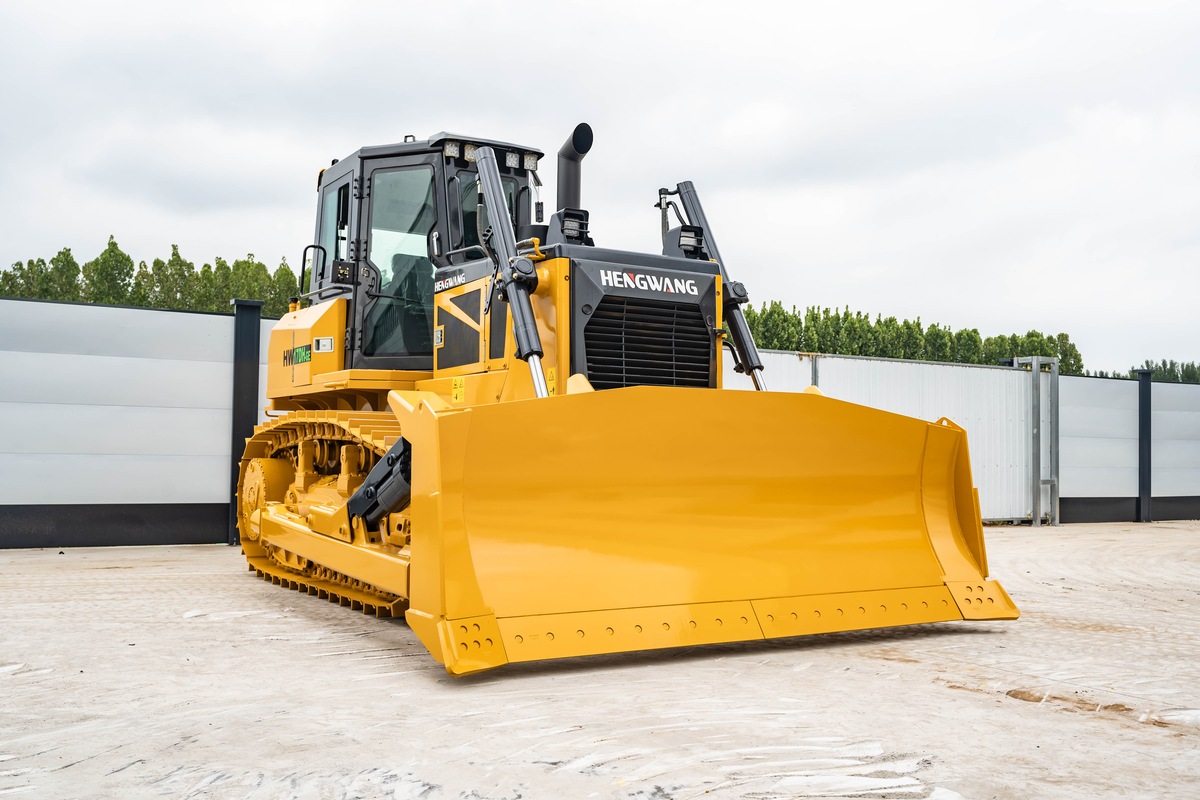

The HW08DH-BE bulldozers have reinforced chassis, arms, and blades, which can handle the most challenging large obstacles, such as large rocks and boulders. The blade is thicker, and the arm coating is improved to enhance strength and durability. It is parricularly suitable for heavy mining applications. It is one of the best-selling products of Hengwang in Africa, where large-scale mining is prevalent.
Performance parameter | Working weight (Without Subsoiler) | 17730 | kg |
| Minimum turning radius | 3745 | mm | |
| Grounding length | 2675 | mm | |
| Ground pressure | 0.065 | Mpa | |
| Engine | Engine model | WP7 | |
| Rated power/Rated speed | 152/1800 | kw/rpm | |
| Dimensions | Overall Dimensions | 5465*3452*3154 | mm |
| Walking performance | Forward speed | 0-10 | km/h |
| Reverse speed | 0-10 | km/h | |
| Chassis system | Track center distance | 1880 | mm |
| Track shoe width | 510 | mm | |
| Number of track shoes (one side/piece) | 39 | ||
| Chain track pitch | 203 | mm | |
| Number of rollers(one side) | 2 | ||
| Number of supporting wheels (one side) | 7 | ||
| Ground clearance | 410 | mm | |
| Fuel tank capacity | Fuel tank | 352 | L |
| Working hydraulic tank | 85 | L | |
| Dozer blade | Shovel type | Straight Blade /Semi-U Shape Blade | |
| Blade width | 3452/3415 | mm | |
| Blade height | 1127/1200 | mm | |
| Lifting height | 1010 | mm | |
| Cutting depth | 520 | mm |
