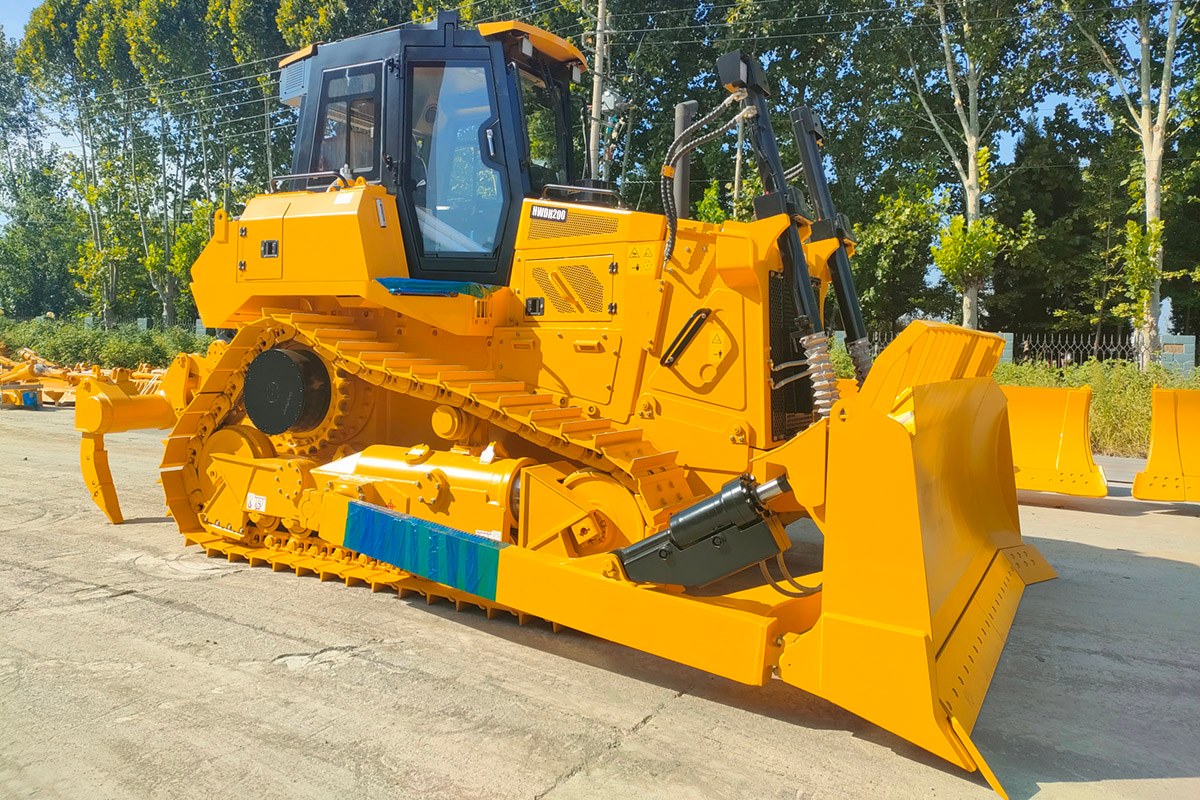

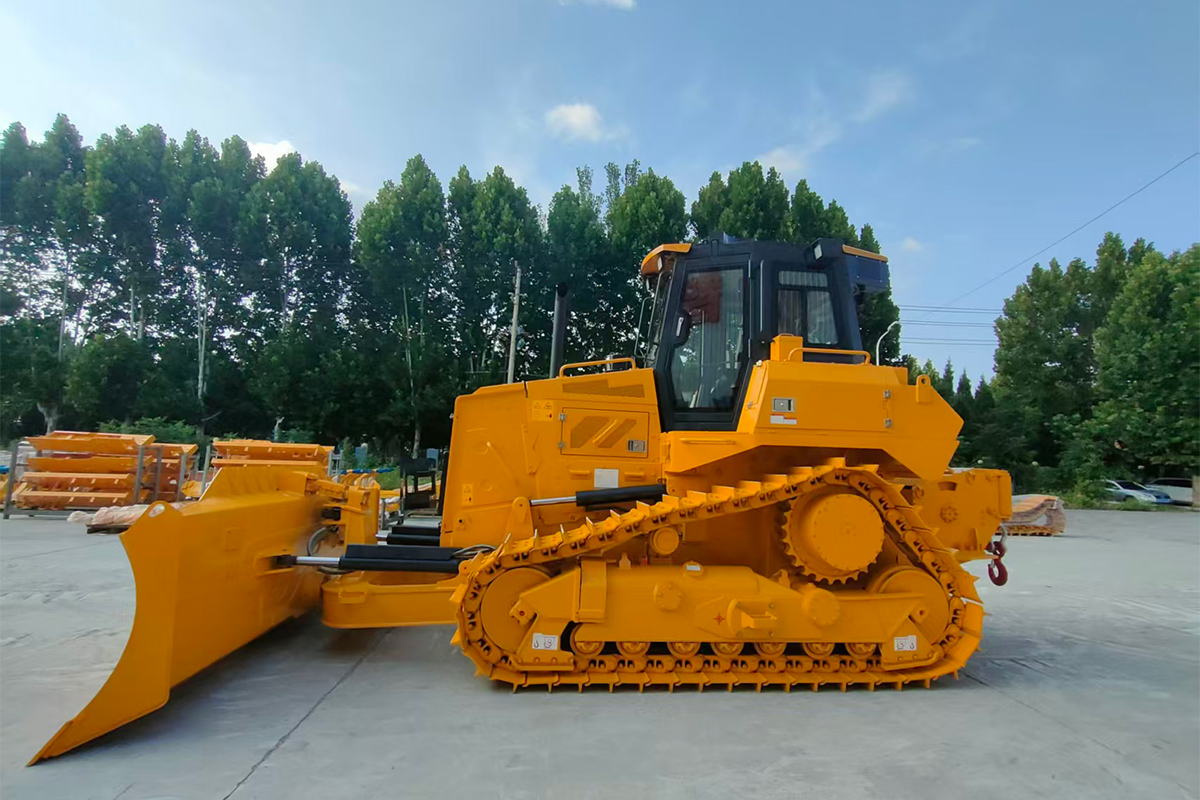

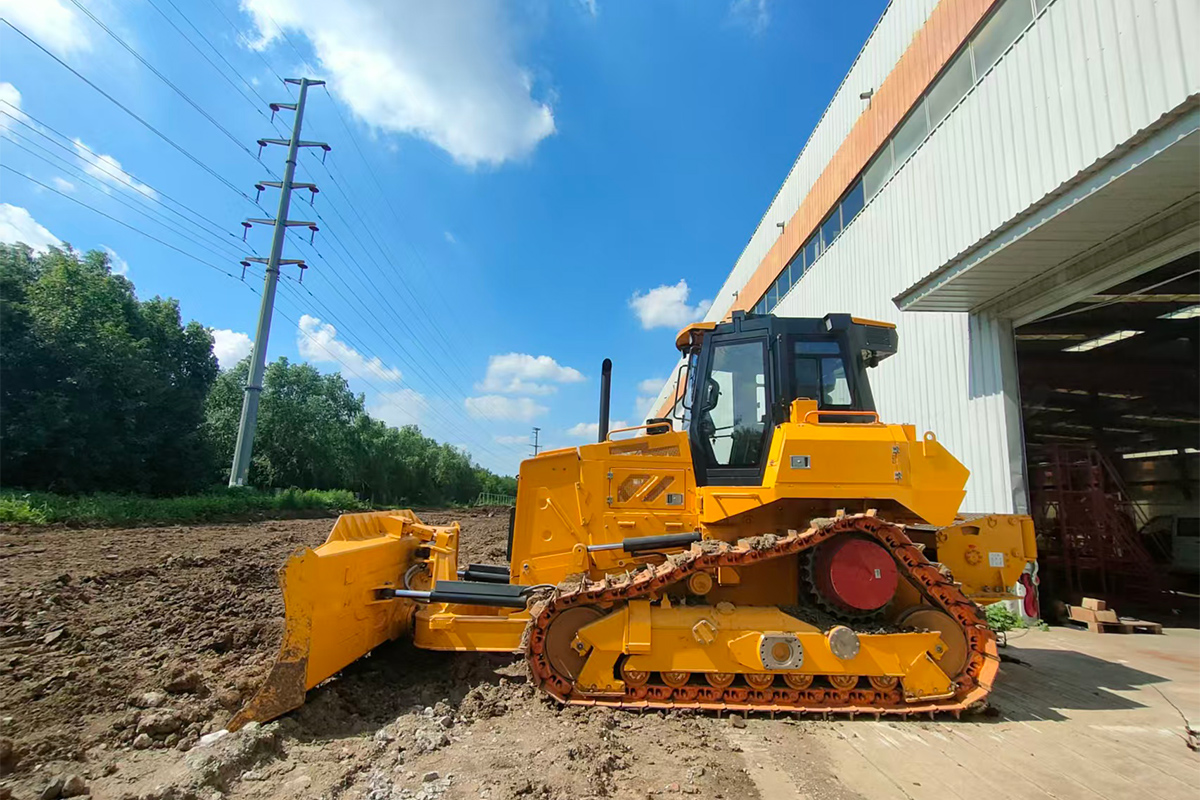

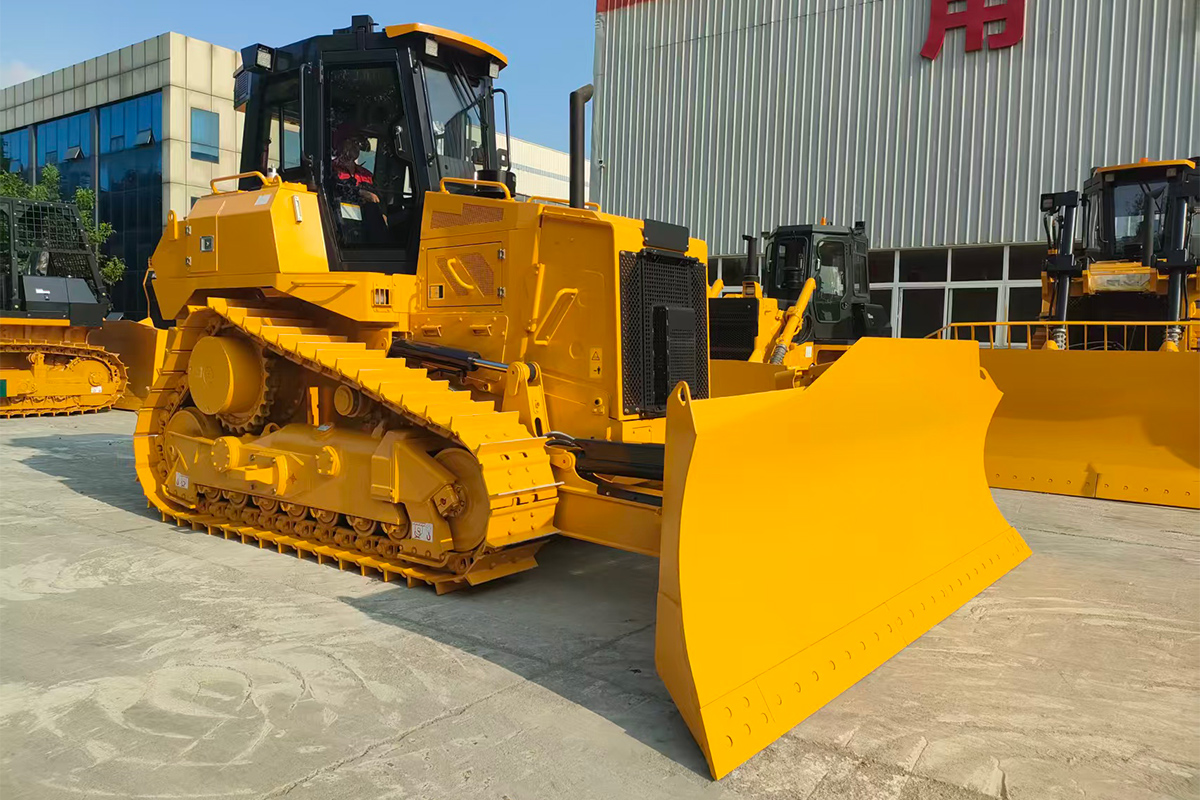

| HWDH200 | |
| Operating weight (T) (without ripper) | 19.8 |
| Engine | SC7H210.1G3 |
| Power (kw/ r/min) | 155/2000 |
Engine type: | 6-cylinder, diesel, water-cooled, turbocharged |
| Grounding length (mm) | 2871 |
| Ground Specific Pressure (MPa) | 0.06 |
| Minimum Ground Clearance (mm) | 418 |
| Climbing performance (°) | 30 |
Number of track plates (per side) | 41 |
| Track plate width (mm) | 510 |
| Track center distance (mm) | 1940 |
Chain rail pitch (mm) | 202.8 |
| Number of Carrier rollers (per side) | 1 |
| Number of Track rollers (per side) | 7 |
| Blade type | Straight Tilt Blade ( Angle Blade / Semi-U Blade) |
| Blade length x height (mm) | 3512×1322 |
| Blade capacity (m3) | 4.3 |
| Max lifting height (mm) | 1120 |
| Max digging depth (mm) | 520 |
| Maximum tilt of blade (mm)c | 410 |
Forward speed of each gear (km/h) | 0-10 |
| Reverse speed of each gear (km/h) | 0-10 |
| Fuel tank capacity （L） | 350 |
| Overall length(mm) | 5282 |
Overall width(mm) | 3512 |
| Track width(mm) | 510 |
