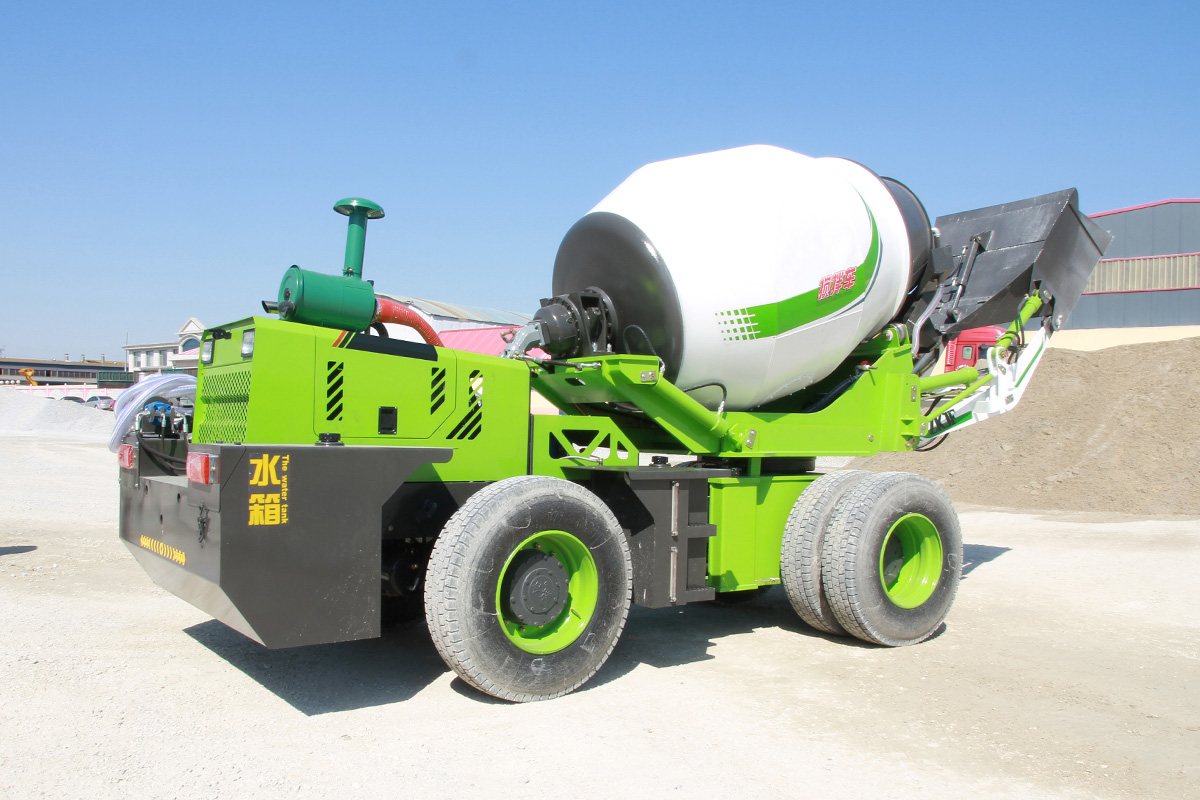

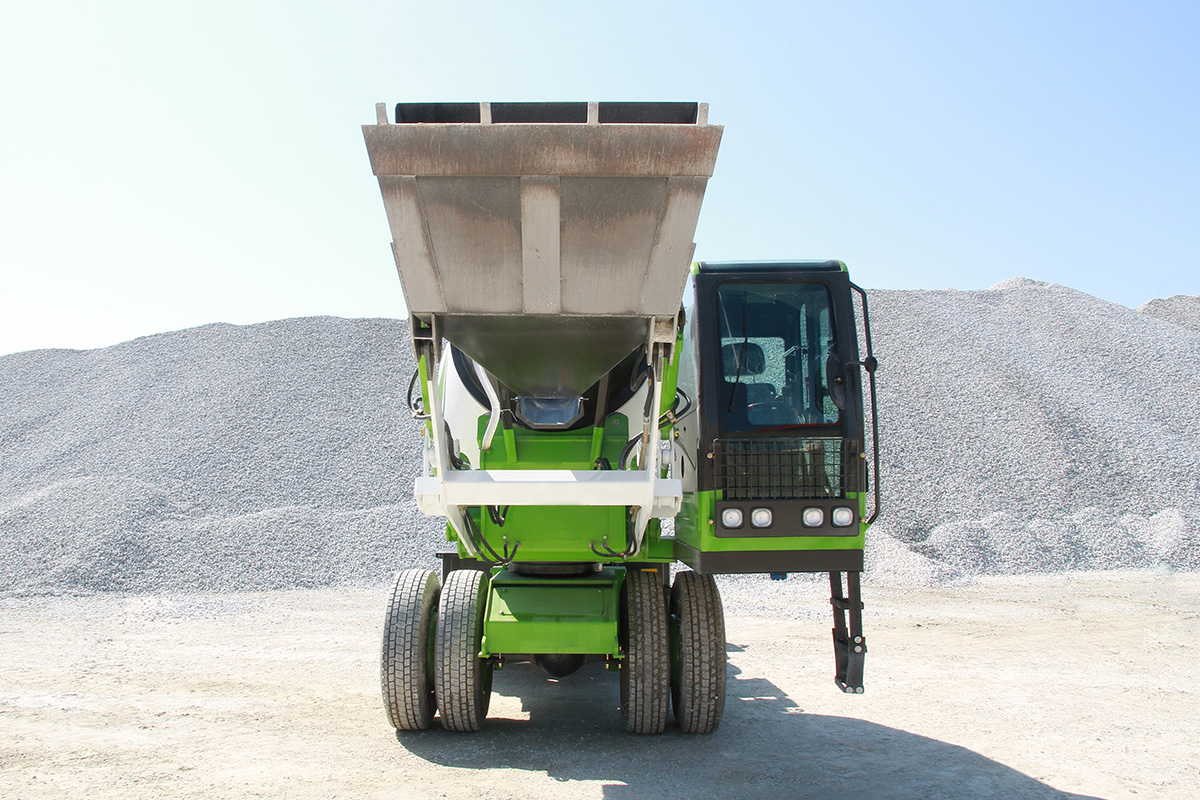

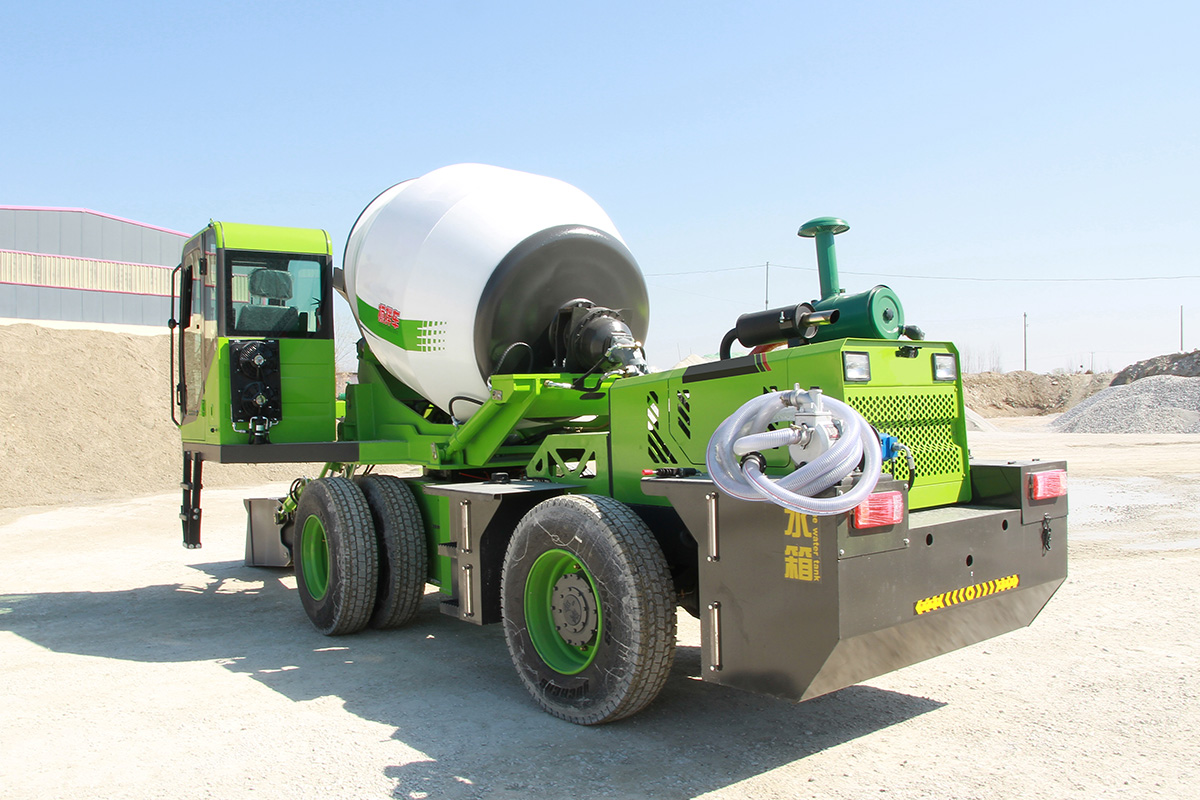

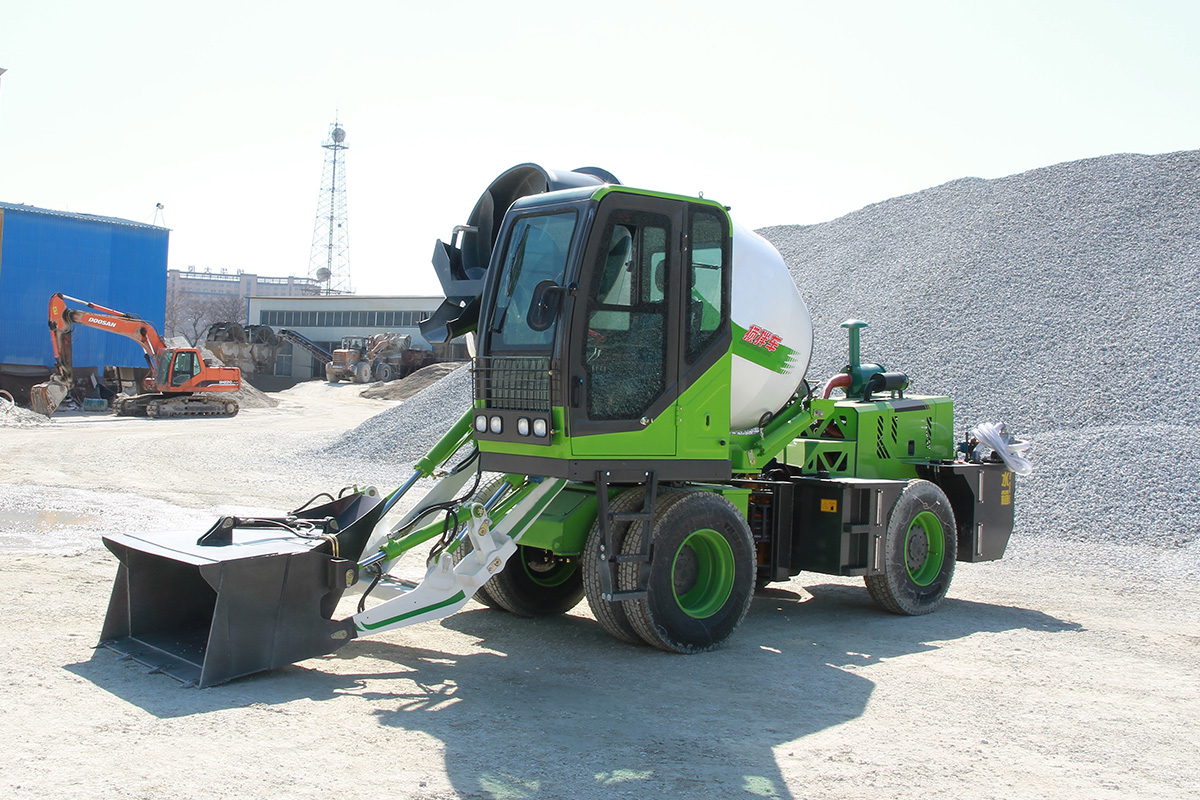

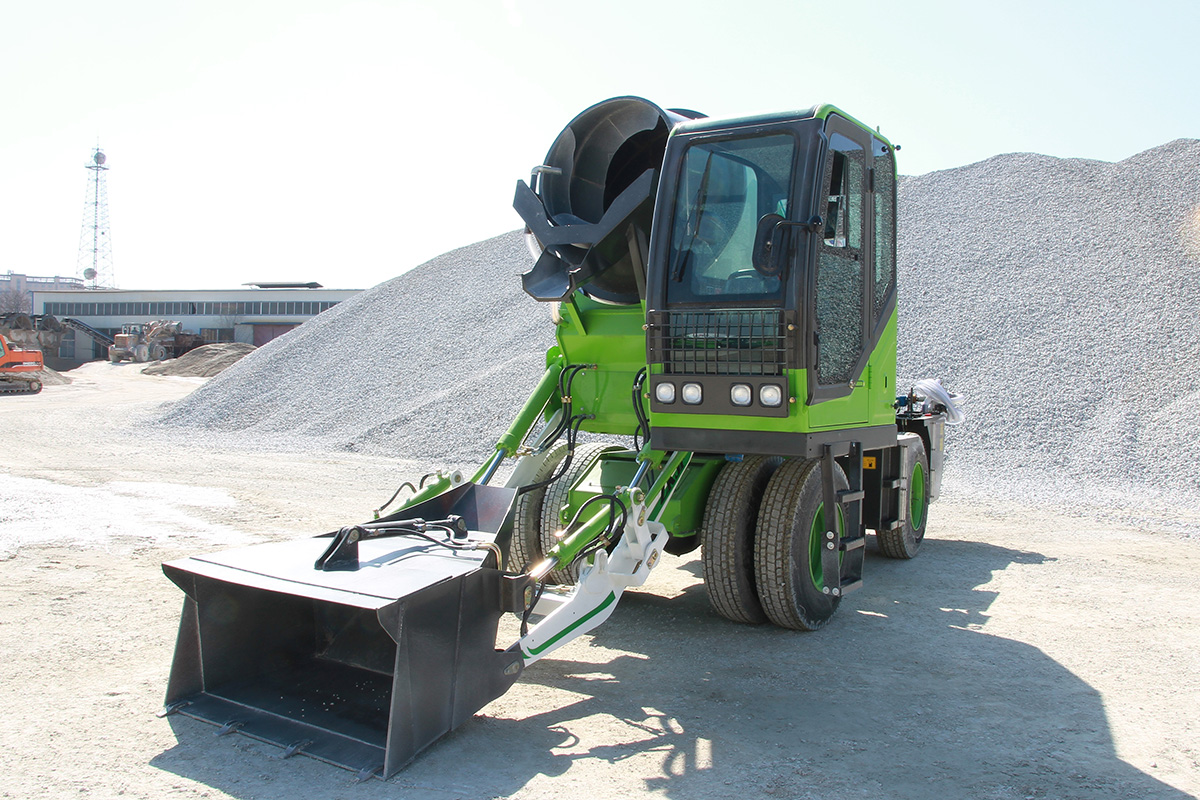

Wheel-type multifunctional hydraulic mixers are widely applicable in various construction sectors such as building engineering, municipal engineering, public works, bridges, urban and rural roads, precast factories, and small precast component plants. They are suitable for mixing dry concrete, plastic concrete, and flowing concrete at construction sites. These machines are particularly suitable for construction and repair in narrow underdeck spaces, significantly enhancing work efficiency.
Product Features:
Easy operation with independent water pump
Independent tank motor cooling extends continuous working time
Enlarged water tank to meet the needs in water-scarce environments
360-degree camera with no blind spots for a broader field of vision
Front-tilting discharge function for more thorough and faster unloading
Main Parameters:
| HWJF350A Concrete Mixer Truck | |||
Vehicle Parameters | Overall Dimensions(L×W×H) | 7600x2800x4180 | mm |
| Wheelbase | 2640 | mm | |
| Curb Weight | 8300 | KG | |
| Drive Form | Torque converer | ||
| Bridge | Extral Large Wheel-end Axle | ||
| Maximum Speed | 30 | km/h | |
| Minimum Turning Radius | 30 | ° | |
| Minimum Turning Radius | 5300 | mm | |
| Minimum Ground Clearance | 380 | mm | |
| Diesel Engine | Model | Yuchai4105 Turbocharging | |
| Rated Power | Rated Power | 85 | kw |
| Gearbox | Model | ZL-280 Power Shift Gearbox | |
| Gearshift | Gearshift | 4Forward+4Back | |
| Fuel tank capacity | Fuel Tank | 120 | L |
| Total Hydraulic System Capacity | 120 | L | |
| Oil | 16 | L | |
| Hydraulic System | Reducer | HJ80-43 | |
| Pump | 80/40 | ||
| Hydraulic Motor | Interpump 56 plunger motor | ||
| Water Supply System | Volume | 920 | L |
| Water Supply | Time Relay | Time Relay | |
