Crawler Excavator

HW-13W

Operating Weight : 0.89T

Bucket Capacity : 0.03m³

Hydraulic Oil Tank Capacity:20L

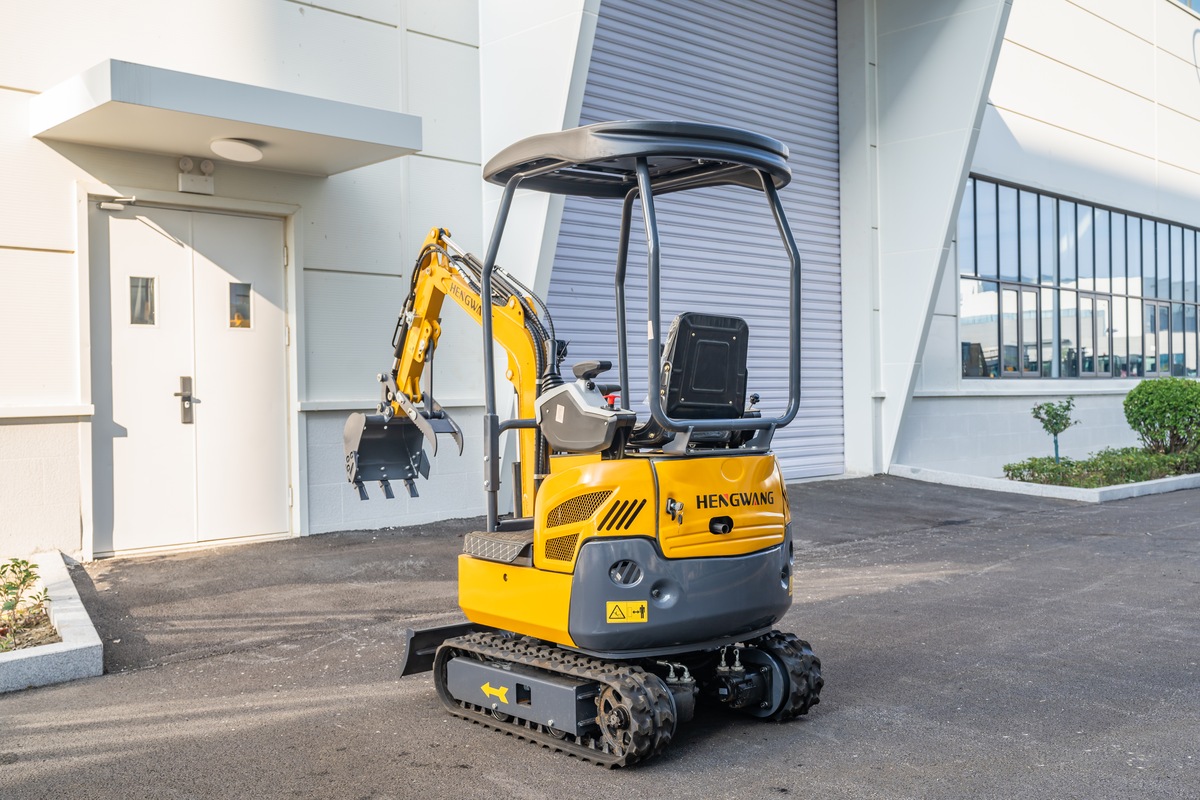

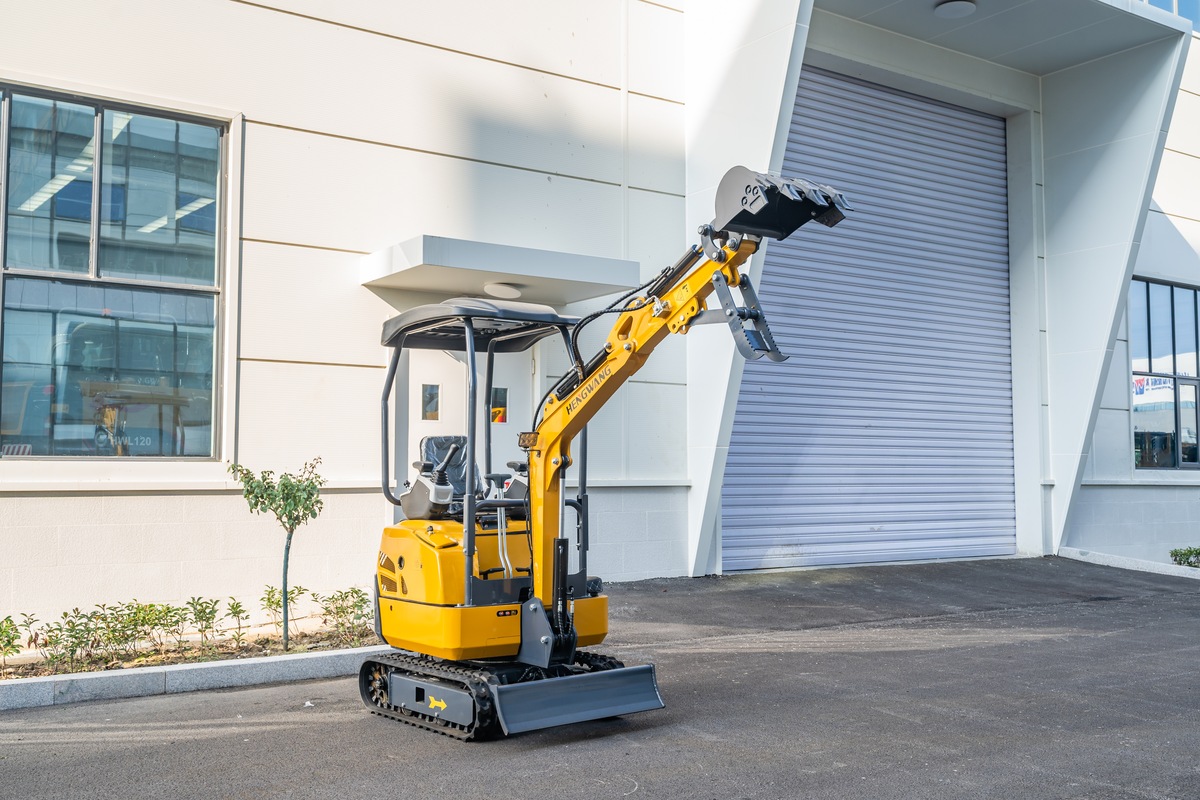

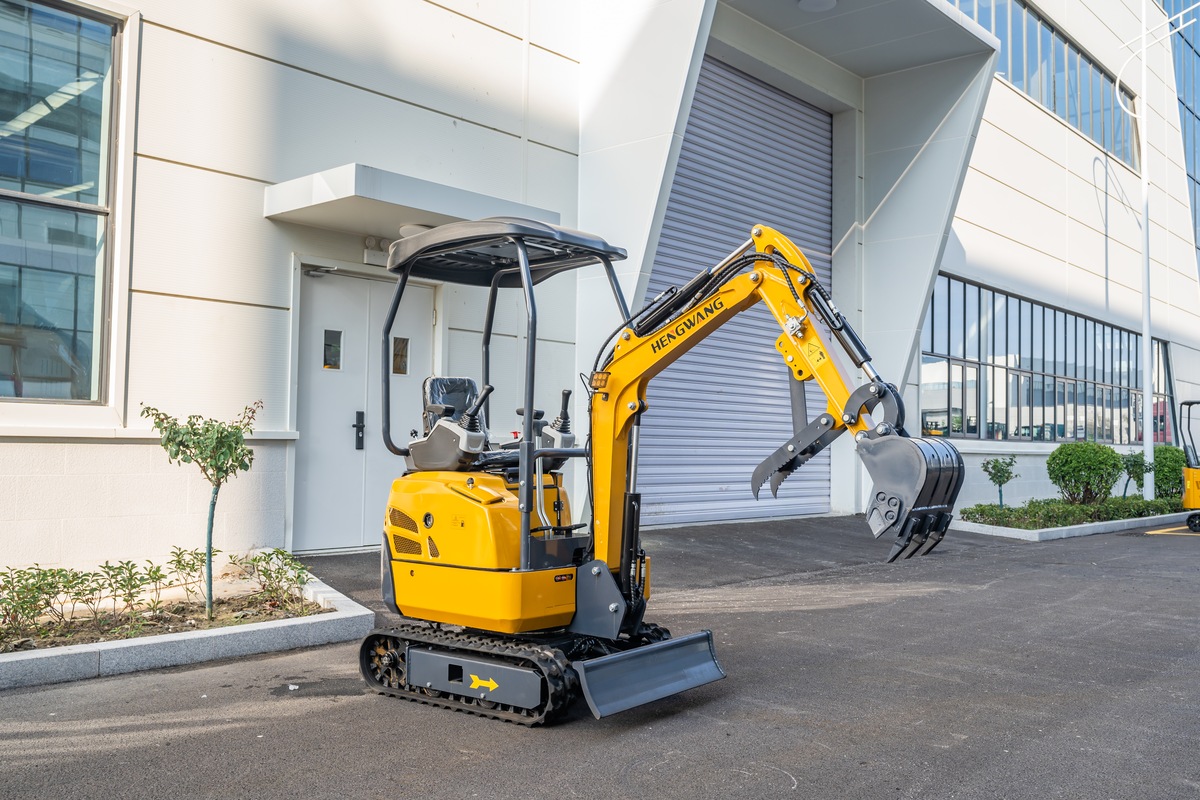

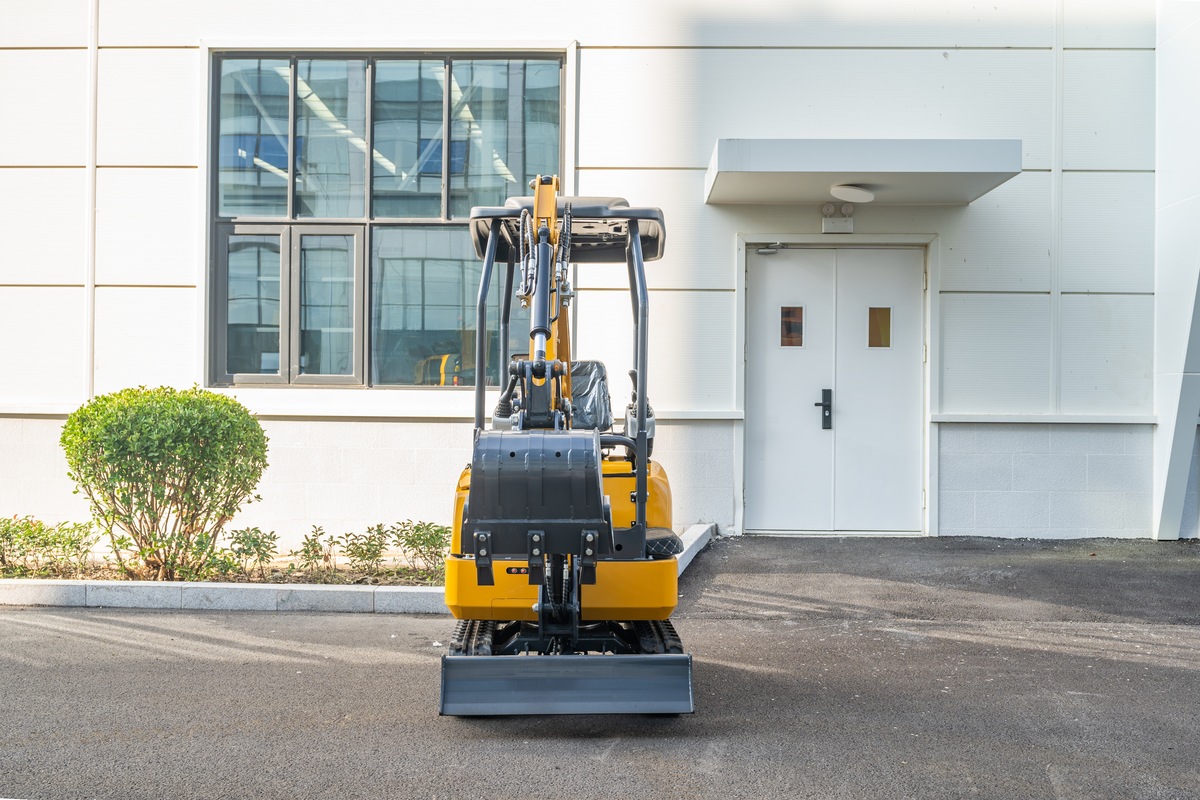

Product Album

1
2
3
4

Product Details

PRODUCT ADVANTAGES


01.High work efficiency:

Excavators can significantly accelerate earthmoving speed, greatly reducing p r o j e c t d u r a t i o n c o m p a r e d t o traditional manual digging methods.

02. Higher accuracy:

With a precise control system, it is possible to achieve accurate construction for earthwork excavation and site leveling

03. Reduce labor costs

It can be paired with a variety of auxiliary tools, enabling it to adapt to various environments for leveling operations, significantly reducing the operation time.

04. Improved security

It reduces the risk of direct manual operation, especially when handling large or heavy materials, and improves the safety of the construction site.

05. Environmental protection and energy saving

It uses engines from major brands for drive, reducing noise pollution and fuel consumption, which aligns more closely with the concept of green environmental protection.

06. Highly adaptable

It is capable of adapting to various construction environments, including but not limited to earthwork excavation, site leveling, and other complex conditions.


MACHINE DETAILED PARAMETERS


Operating Weight 0.89T
Mechanical / PilotPilot
BrandSuntong
ModelR420D
Power

8.5

kw
Emission StandardsEPA&Euro 5
Hydraulic Pump BrandWalking in Tianjin
Cooling MethodAir Cooling
Fuel TypeGasoline
Hydraulic Oil Tank Capacity20L
Multi-valve BrandBoxin
Engine Speed3600r/min
Slewing Motor BrandPione/Rui Li/Fu Kang
Travel Motor BrandPione/Rui Li/Fu Kang
Bucket Capacity 0.03

Length x Width x Height3000*1000*2300

mm

Rubber Track180*72*37
Track Width1000mm
Maximum Digging Depth1750mm
Maximum Digging Height 2560mm
Maximum Dumping Height1800mm
Maximum Digging Reach3060mm


Any changes to the above parameters will not be notified separately! For the latest information, please contact our customer service representatives: For inquiries and obtaining a quote
