Lifting height: 3m
Equipment Own weight: 1570kg-7100kg
Full battery operating time: 4-8 hours
Powerful. Efficient. Future-Ready.
1T-5T Series Electric Forklifts – Engineered for Excellence
Key Advantages:
1. Superior Performance & Productivity
- Full AC Motor System: 5-18KW traction motor + 4.5-25KW lifting motor for smooth, responsive operation in demanding environments.
- Adaptive Speed Control: Max travel speed up to 12-13 km/h, lifting speed 200-300mm/s (configurable), optimized for workflow efficiency.
2. Long-Lasting Battery & Fast Charging
- Flexible Power Options: 48V-80V lead-acid or lithium batteries (120Ah-500Ah), delivering 4-8 hours of continuous operation.
- Rapid Recharge: Full charge in 8 hours (optional fast-charging available), minimizing downtime.
3. Robust & Safety-Focused Design
- Heavy-Duty Construction: Frame weight 1,570kg-7,100kg with 3m lifting height (customizable); 500mm load center for stable 1T-5T handling.
- Enhanced Stability: 5°-12° mast tilt, anti-slip tires (front: 18x7-10 to 28x9-15; rear: 15x4½-8 to 21x8-9), ensuring safety on uneven surfaces.
4. Versatile Customization

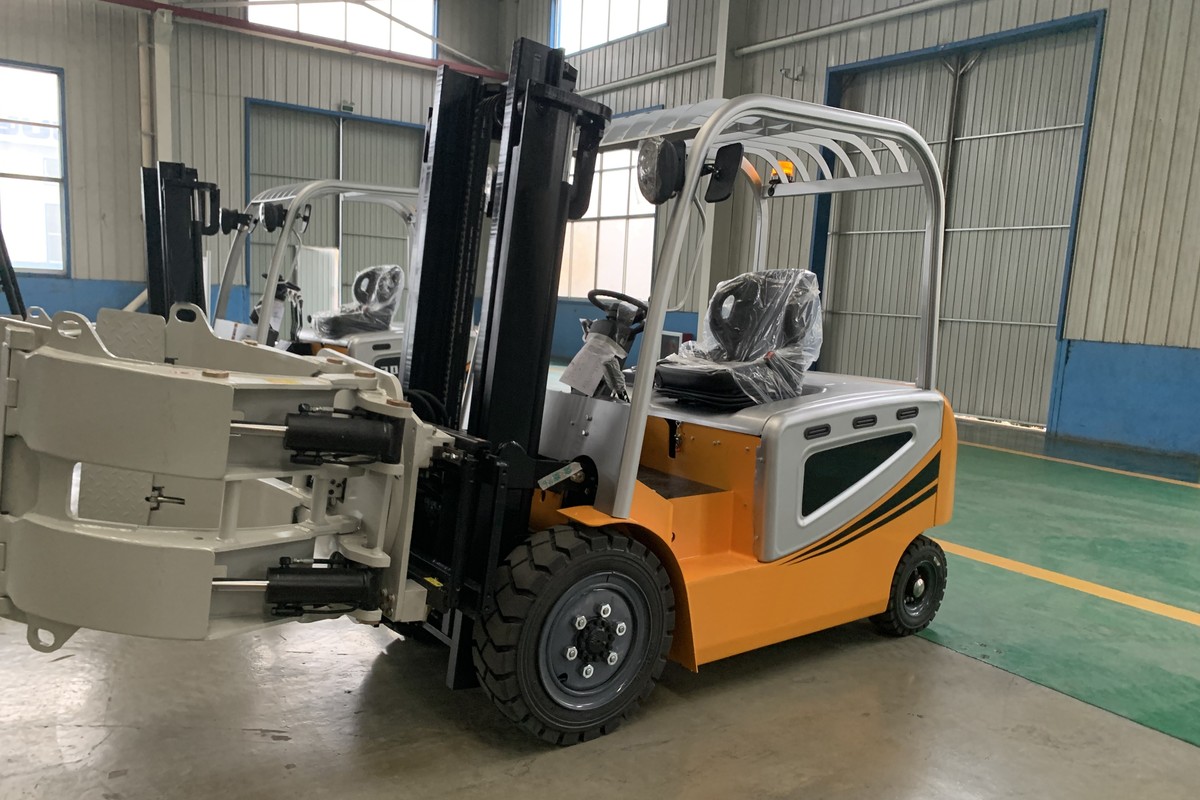

- Multi-Attachment Support: Side shift forks, clamps, central cylinders, and more for pallets, drums, or specialized loads.
- Eco-Adaptive: Zero-emission operation with lead-acid/lithium battery options, ideal for warehouses, cold storage, and manufacturing.
Ideal Applications:
- Warehousing & Logistics: High-frequency pallet handling, narrow-aisle maneuverability.
- Manufacturing: Heavy component transport, production line integration.
- Ports & Cold Storage: Slip-resistant tires, lithium battery reliability in low temperatures.
Engineered for Efficiency. Built for Safety.
The 1T-5T electric forklift series combines intelligent design with industrial durability to maximize ROI.
(Custom configurations available – Contact our engineering team for tailored solutions.)
| Model | 1.0-5.0T |
| Lifting height | 3m (Customizable) |
| Own weight | 1570kg-7100kg |
| Battery weight | 138kg-1100kg |
| Battery capacity (Lead-acid batteries) | 48V/120Ah; 48V/180/220Ah/300/400Ah; 80V/500Ah, etc |
| Charging time | 8 hours |
| Full battery operating time | 4-8 hours (Depends on the battery) |
| Maximum travel speed | 11/12Km/h; 12/13Km/h |
| Maximum lifting speed | 200/300mm/s; 250/280mm/s, etc (Depends on the battery) |
| Tilt of the mast,front/rear | 5/10°; 6/12° |
| Load center distance | 500mm |
| Front tire model | 18x7-10; 65-10; 28x9-15; 250-15, etc. |
| Rear tire model | 15X4 1/2-8; 16x6-8; 18x7-8; 21X8-9, etc. |
| Fork length | 30*100*920mm; 35*100*920mm; 45*122*1070mm; 40*100*1070; 50*150*1070; 55*150*1070, etc. |
| Drive motor power-60 minutes | 5-18 KW |
| Lifting motor | 4.5-25KW |
| Motor type | Full AC |
| Optional services and configurations | Lifting; lateral movement; three-stage mast; central cylinder; dry battery; lithium battery; clamp; registration,etc. |
