Rated lift weight: 6000kg
Rated lifting height: 3000-7000mm
Overall weight:6500kg

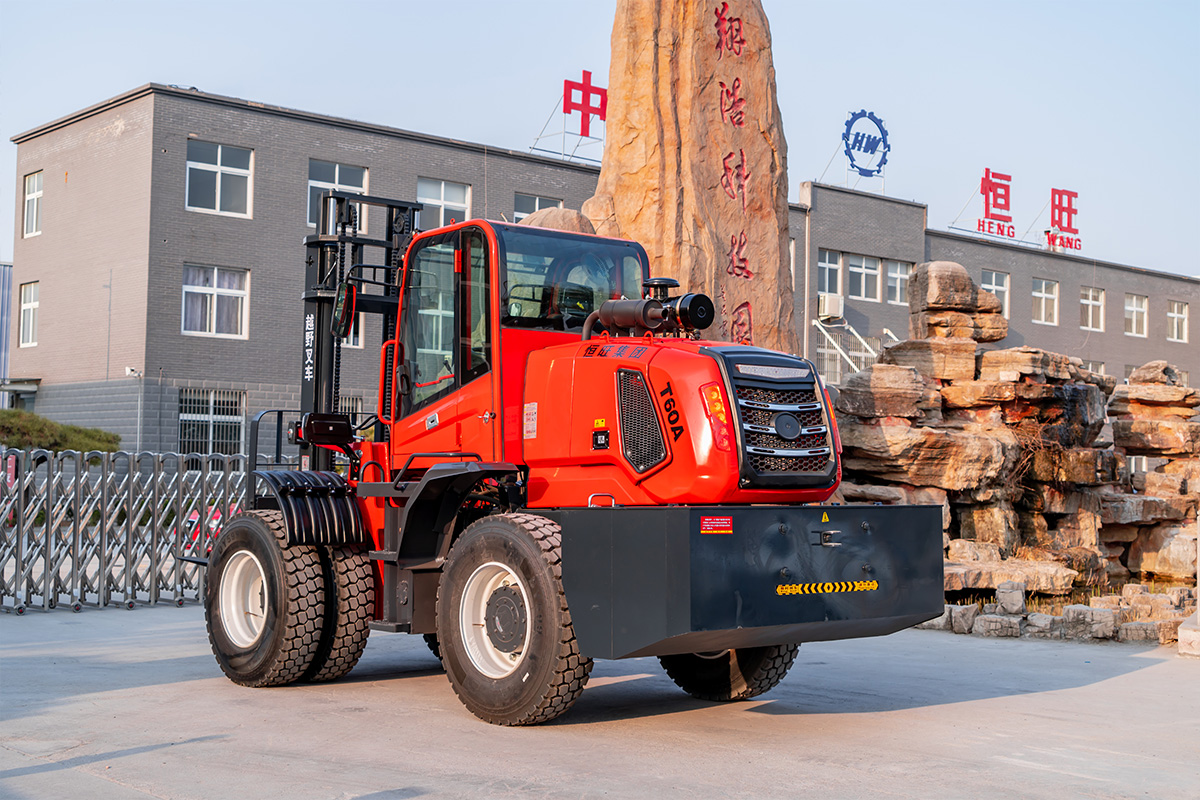

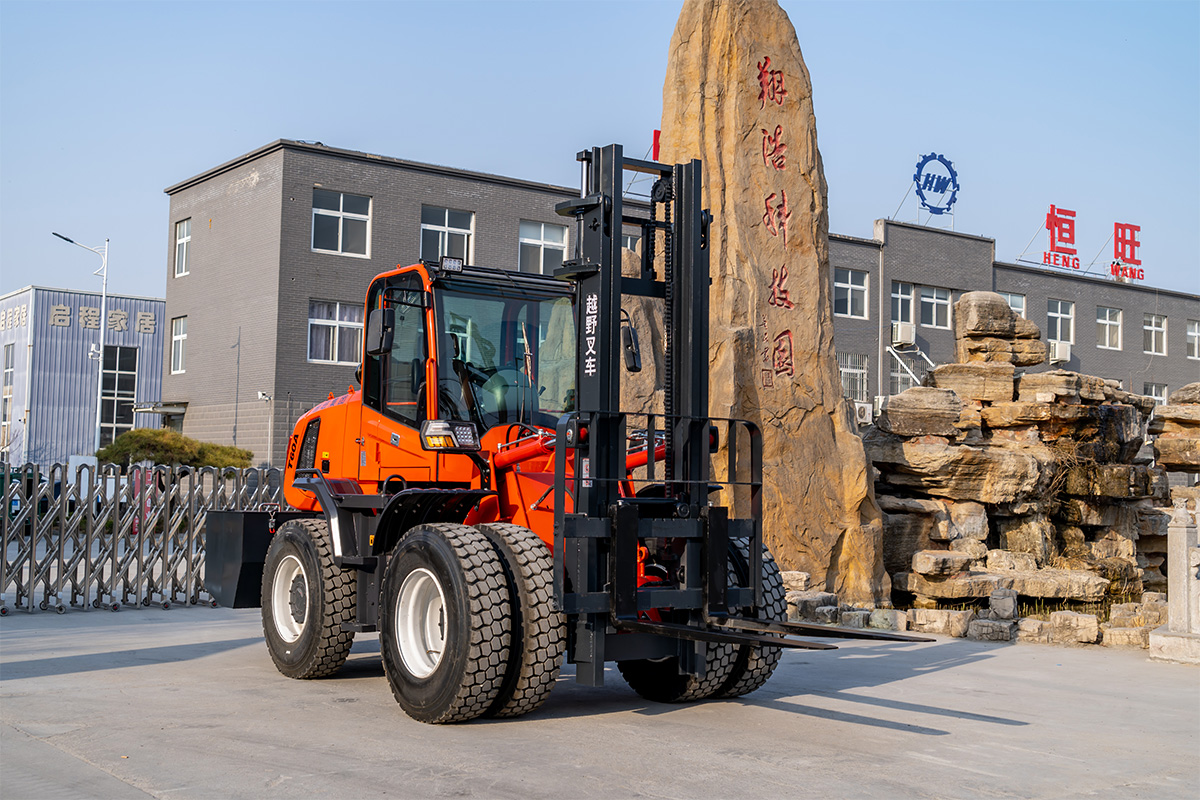

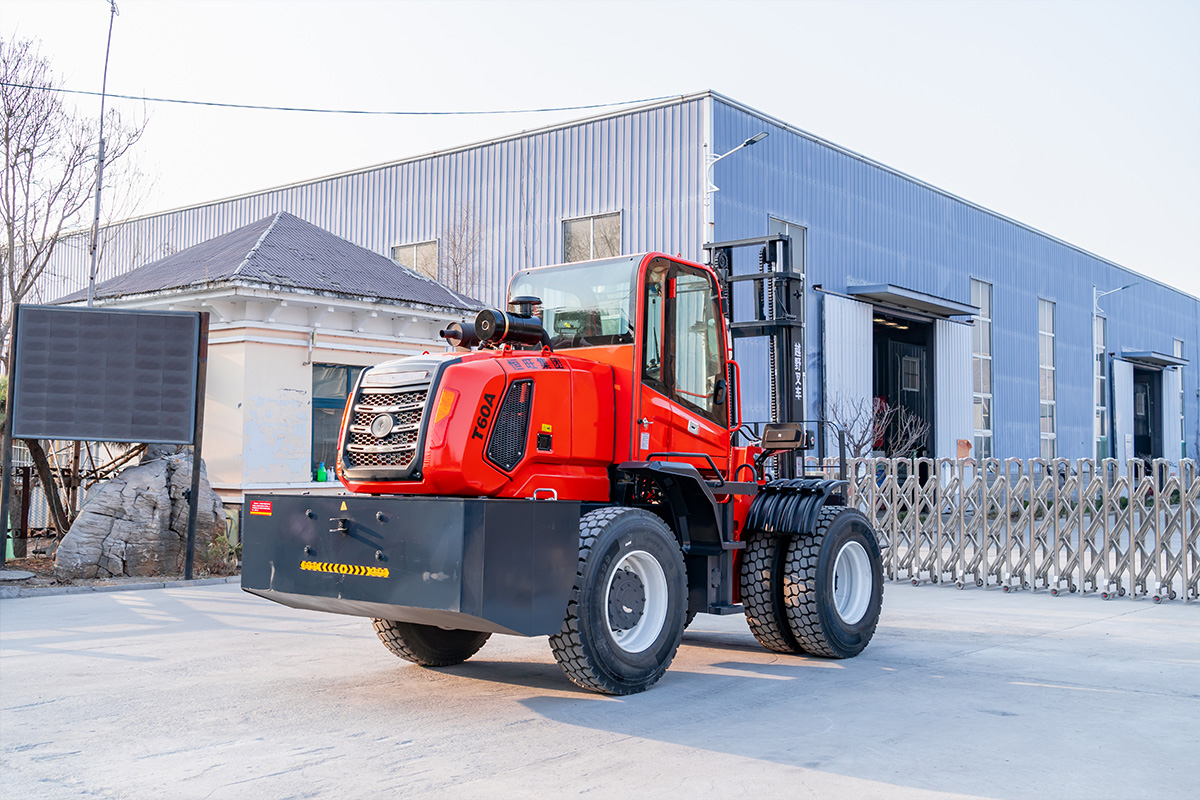

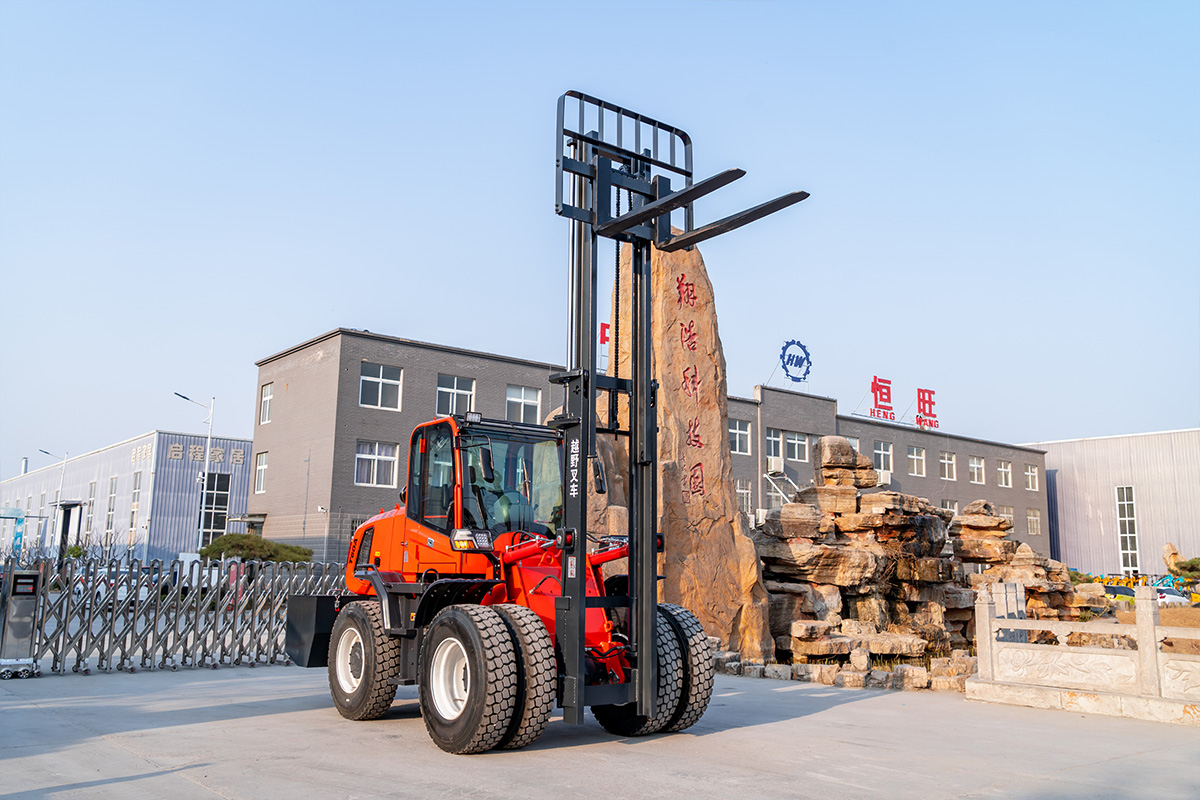

Off-road forklifts, also known as field forklifts, are material handling equipment designed for complex working environments. In addition to airpors, docks, and stations, they are also suitable for feld sites and material distribution centers with harsh road conditions such as mines and farms. With its powerful power system and special off-road tires, it has excellent maneuverability, strong off-road performance and high reliability. It can efficiently complete cargo loading and unloading and handling tasks on unpaved roads such as muddy and gravel roads, greatly improving the efciency and stability of feld operations.
MACHINE DETAILED PARAMETERS
| Dimensions | 4600*2200*2850 | mm |
| Engine model | Yunnei/quanchai | |
| Engine power | 80/103 | kw |
| Fork length | 1520 | mm |
| Rated lift weight | 6000 | kg |
| Rated lifting height | 3000-7000 | mm |
| Turning radius | 4500 | mm |
| Platform ground clearance | 350 | mm |
| Front ground clearance | 300-380 | mm |
| Mast width | 18cm Heavy-duty Gantr | cm |
| Axle | GS30 type heavy-duty axle | |
| Tyre | 12R22.5 front four rear two vacuum steel tire | |
| Gradeability | ≤38° | ° |
| Drive type | 4-wheel drive | |
| Gearbox | 280 Double high and low speed large pump torque converer | |
| Overall weight | 6500 | kg |
