Operating weight: 3T
Engine power: 28HP
Exciting force: 60KN

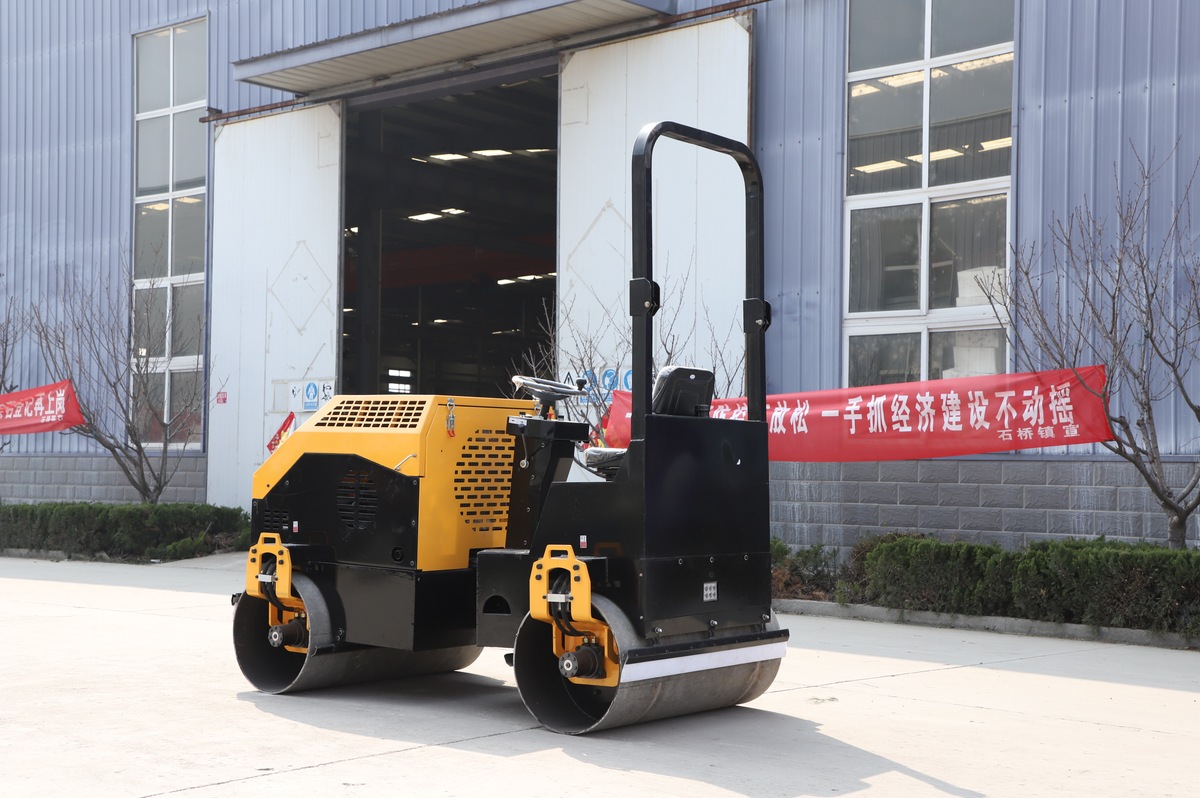

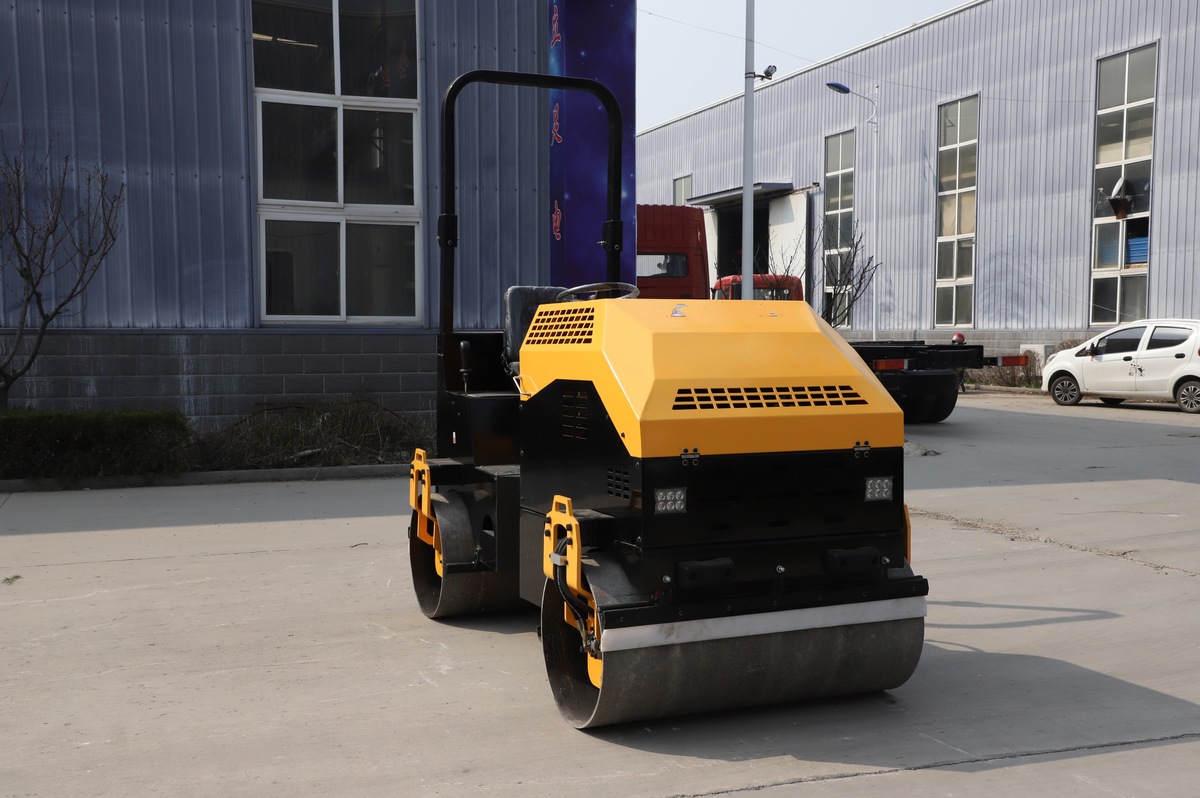

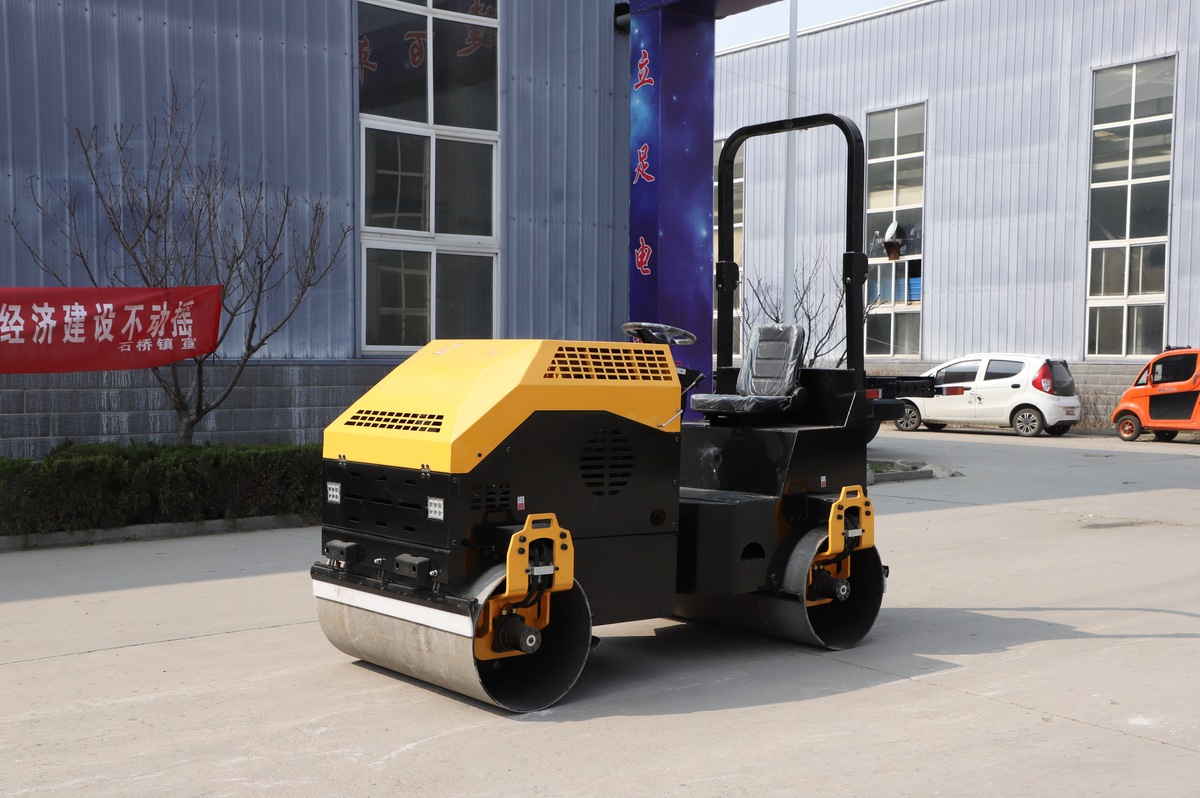

HW-3T Ride-on Road Roller, featuring a small working radius and flexible steering, can operate in narrow areas. It's primarily used for compaction and leveling in trench foundations, roads, sports fields, and also suitable for compacting asphalt surfaces. The 3-ton road roller is a double steel wheel vibratory roller; it incorporates advanced technology from home and abroad, offering powerful performance and superior quality; equipped with original brand engines and brand hydraulic components; has a working weight of 3 tons, with a vibration force of up to 5.5 tons; the machine features hydraulic steering and vibration, making it comfortable and simple to operate; it also has enhanced climbing capabilities.
Product Features:
1. 3-ton road roller is a double steel wheel vibratory roller;
2. Integrates advanced domestic and international technology, powerful and superior performance;
3. Equipped with original brand engines and brand hydraulic components;
4. Working weight of 3000kg, with a vibration force up to 5.5 tons;
5. Features hydraulic steering and vibration.
Main Specifications:
| Model | HW-3T |
| Operating Weight (Kg) | 3000 |
| Exciting Force (kN) | 60 |
| Amplitude (mm) | 0.6 |
| Travel Speed (km/h) | 0-8 |
| Climbing Ability (%) | 30 |
| Vibration Frequency (Hz) | 70 |
| Dimensions (mm) | 2700*1300*2400 |
| Steel Wheel Size (mm) | Φ630*1200*2*(T10) |
| Engine Model | Changchai 390 National III |
| Engine Power (HP) | 28/39~51 |
| Static Line Load (N/cm) | 60 |
| Drive Mode | Double Drive Hydraulic Rotation |
| Vibration Mode | Full Hydraulic |
| Travel Mode | Bidirectional Hydraulic Single Vibration |
| Starting Mode | Hand Pull/Electric Start |
| Water Tank Capacity (L) | 170 |
| Hydraulic Oil Tank Capacity (L) | 50 |
