Operating weight: 4T
Engine power: 80HP
Exciting force: 80KN

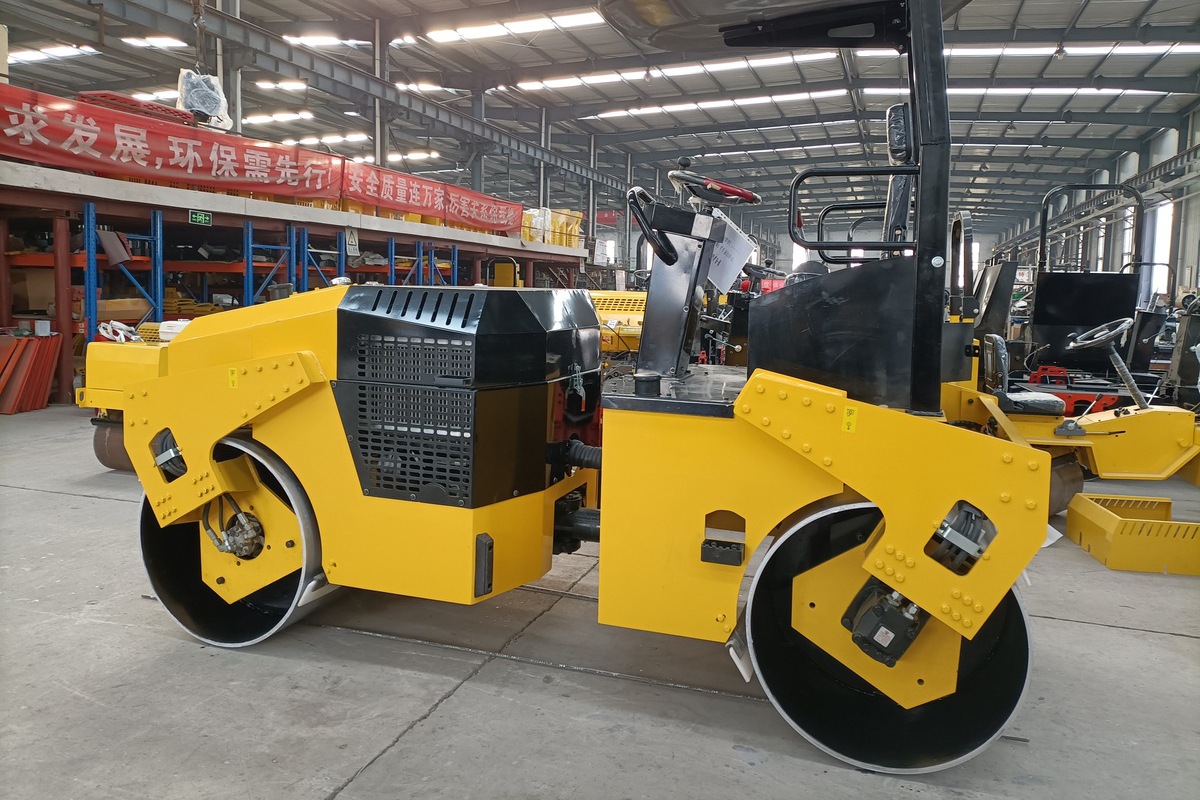

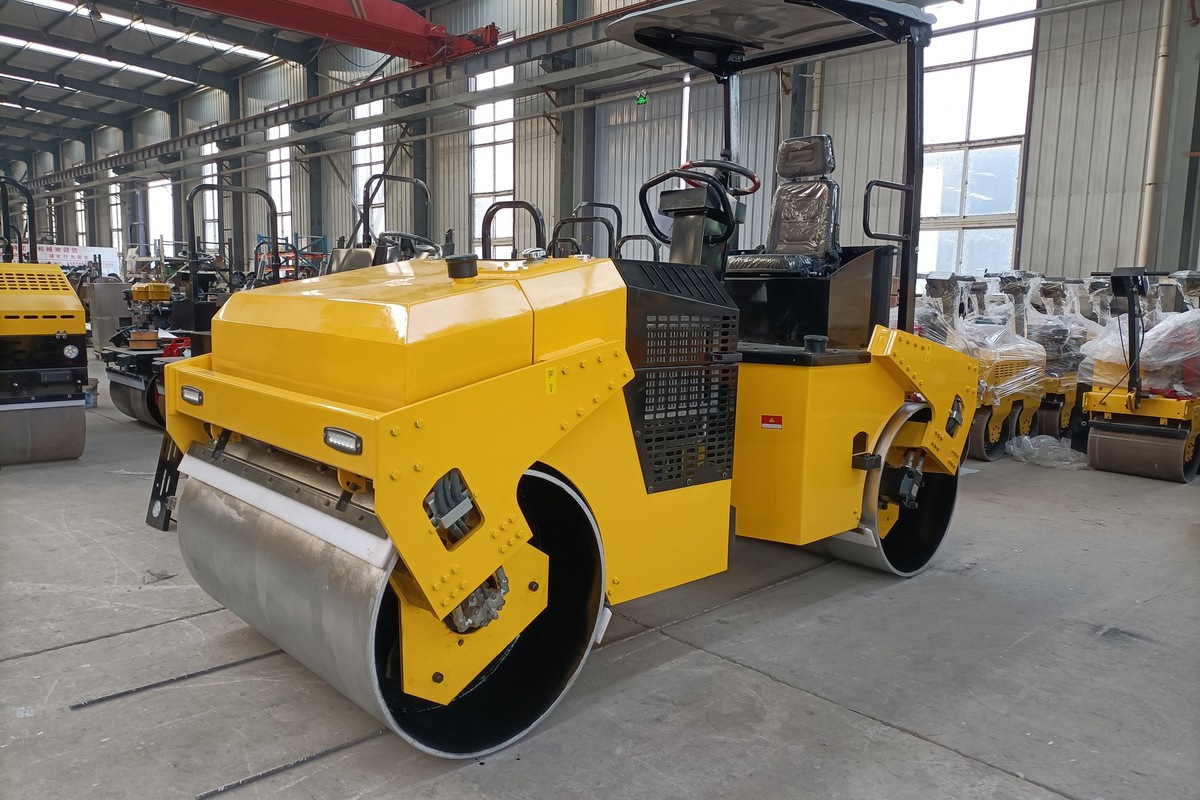

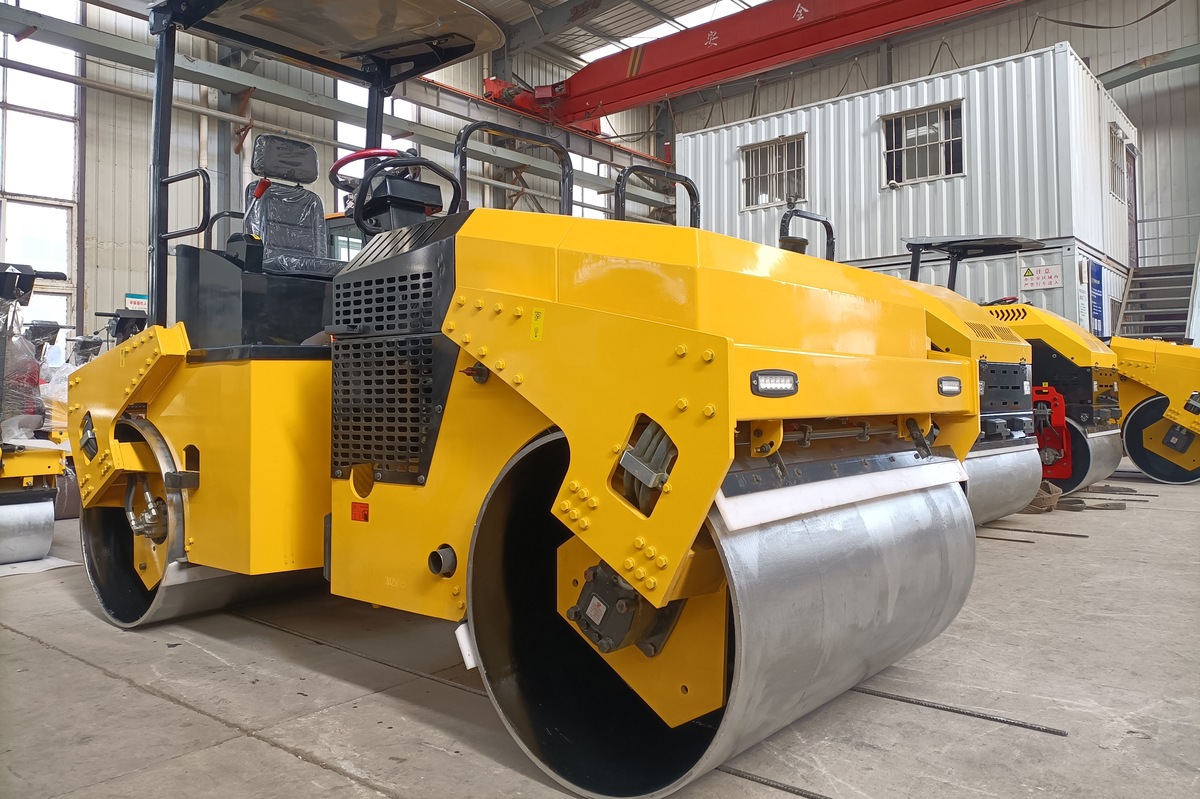

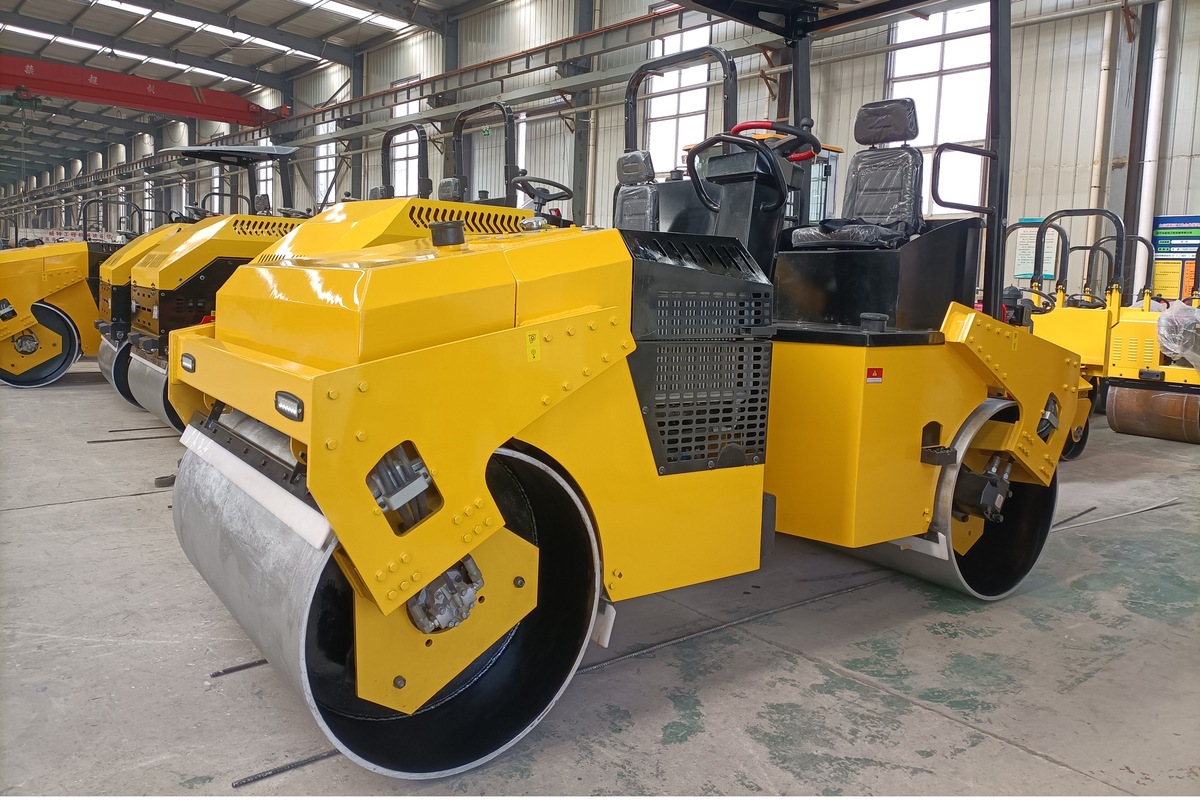

The 4T Road Roller is a single steel wheel vibratory roller; it integrates advanced technology from home and abroad, offering powerful performance and superior quality; equipped with original brand engines and brand hydraulic components; has a working weight of 4200kg; the machine features hydraulic steering and vibration; optional cabin is available, providing operators with a comfortable operating experience.
Product Features:
HW-4T Road Roller is a single steel wheel vibratory roller;
Integrates advanced domestic and international technology, powerful and superior performance;
Equipped with original brand engines and brand hydraulic components;
Working weight of 4200kg;
Features hydraulic steering and vibration;
Optional cabin available, enhancing operator comfort.
Main Specifications:
| Model | HW-4T |
| Operating Weight (Kg) | 4000 |
| Exciting Force (kN) | 80 |
| Amplitude (mm) | 0.6 |
| Travel Speed (km/h) | 0-10 |
| Climbing Ability (%) | 30 |
| Vibration Frequency (Hz) | 80 |
| Dimensions (mm) | 3100*1350*2460 |
| Steel Wheel Size (mm) | 700*1380*2 |
| Engine Model | Changfa National IV |
| Engine Power (HP) | 40KW |
| Static Line Load (N/cm) | 60 |
| Drive Mode | Double Drive Hydraulic Rotation |
| Travel Mode | Hydraulic Double Drive |
| Starting Mode | Hand Pull/Electric Start |
| Water Tank Capacity (L) | 160 |
| Hydraulic Oil Tank Capacity (L) | 60 |
