Products

Operating weight: 8T

Engine power: 75HP

Exciting force: 160KN‎

Operating weight: 10T

Engine power: 75HP

Exciting force: 160KN‎

Operating weight: 12T

Engine power: 86HP

Exciting force: 285KN‎

Operating weight: 14T

Vibration Frequency: 30Hz

Exciting force: 210KN‎

Operating weight: 18T

Vibration Frequency: 35Hz

Exciting force: 280KN‎

Operating weight: 20T

Vibration Frequency: 35Hz

Exciting force: 290KN‎

Drilling depth: 350m

Drilling diameter: 89~102mm

Power: 91kW

Drilling depth: 450m

Drilling diameter: 89~102mm

Power: 110kW

Drilling depth: 500m

Drilling diameter: 89~102mm

Power: 110kW

Drilling depth: 600m

Drilling diameter: 105~210mm

Power: 132kW

Drilling depth: 750m

Drilling diameter: 102/108/114mm

Power: 176/154kW

Drilling depth: 1000m

Drilling diameter: 114mm

Power: 194kW

Drilling depth: 1200m

Drilling diameter: 114/127mm

Power: 264kW

Depth:100-200-300m

Total Weight:3.6T

Rated Power:58KW

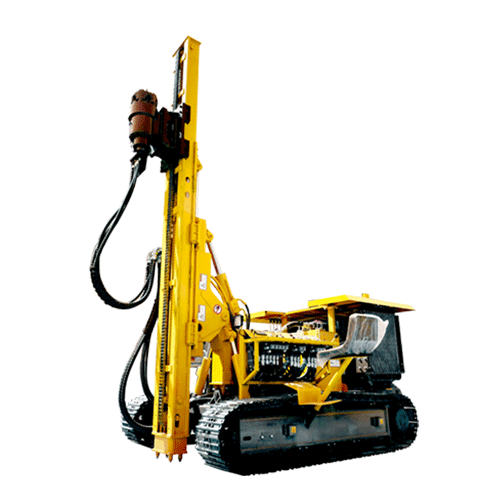

Main parameters Model HW936 Engine Cummins Power (KW) 191 Drill rod type (㎜) φ76*3000 Drilling diameter (㎜) φ90-115 Maximum working torque (N.m) 2700 Rotation speed (rpm) 70-150 Thrust force (kN) 15 Lifting force (kN) 25 Thrust mode M

Drilling Depth：0-30m

Rated power：92/120kw

Drill rod diameter ：100mm
