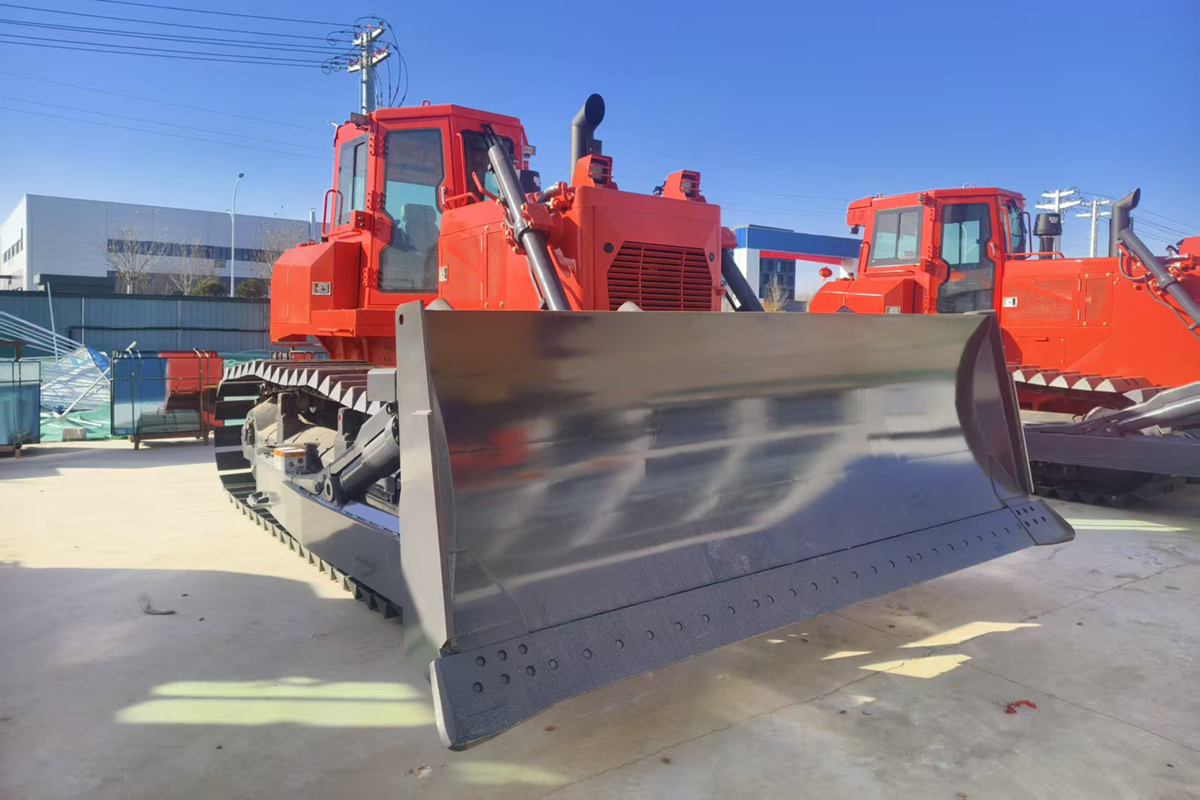

| Model | HW24DS | ||
| Performance Parameters | Operating Mass (kg) (excluding ripper) | 26900 | |
| Minimum Turning Radius (mm) | 3610 | ||
| Ground Contact Length (mm) | 3480 | ||
| Ground Contact Pressure (MPa) | 0.037 | ||
| Engine | Engine Model | Weichai WP13G271E471 | |
| Power/Speed (kw/rpm) | 199/1900 | ||
| Overall Dimensions | Overall Dimensions of the Machine (mm) | 6130×4362×3510 | |
| Travel Performance | Forward Speed (km/h) | F1: 0～3.8 | |
| F2: 0～6.9 | |||
| F3: 0～11.8 | |||
| Reverse Speed (km/h) | R1: 0～4.5 | ||
| R2: 0～8.1 | |||
| R3: 0～13.9 | |||
| Chassis System | Minimum Ground Clearance (mm) | 405 | |
| Track Gauge (mm) | 2250 | ||
| Track Shoe Width (mm) | 910 | ||
| Number of Track Shoes (per side/piece) | 45 | ||
| Track Link Pitch (mm) | 216 | ||
| Number of Carrier Rollers (per side) | 2 | ||
| Number of Track Rollers (per side) | 8 | ||
| Fuel Tank Capacity | Fuel Tank (L) | 480 | |
| Working Hydraulic Tank (L): | 110 | ||
| Working Devices | Blade | Blade Type | Straight Tilt Blade |
| Blade Capacity (m³） | |||
| Blade Mass (kg) | 3425 | ||
| Blade Width (mm) | 4362 | ||
| Blade Height (mm) | 1406 | ||
| Maximum Lifting Height (mm) | 1300 | ||
| Maximum Cutting Depth (mm) | 550 | ||
| Ripper | Ripper Type | / | |
| Ripper Mass (kg) | / | ||
| Maximum Ripping Depth (mm) | / | ||
| Maximum Lifting Height (mm) | / | ||
| Winch | Winch Type | ||
| Hydraulic Motor Model | |||
| System Pressure (MPa) | |||
| Maximum Pull Force at First Layer (KN) | |||
| Maximum Rope Speed at First Layer (m/min) | |||
| Number of Rope Layers (layers) | |||
| Wire Rope Size (mm) | |||
