Power: 567KW
Maximum Digging Height: 13000mm
Maximum Unloading Height: 8450mm

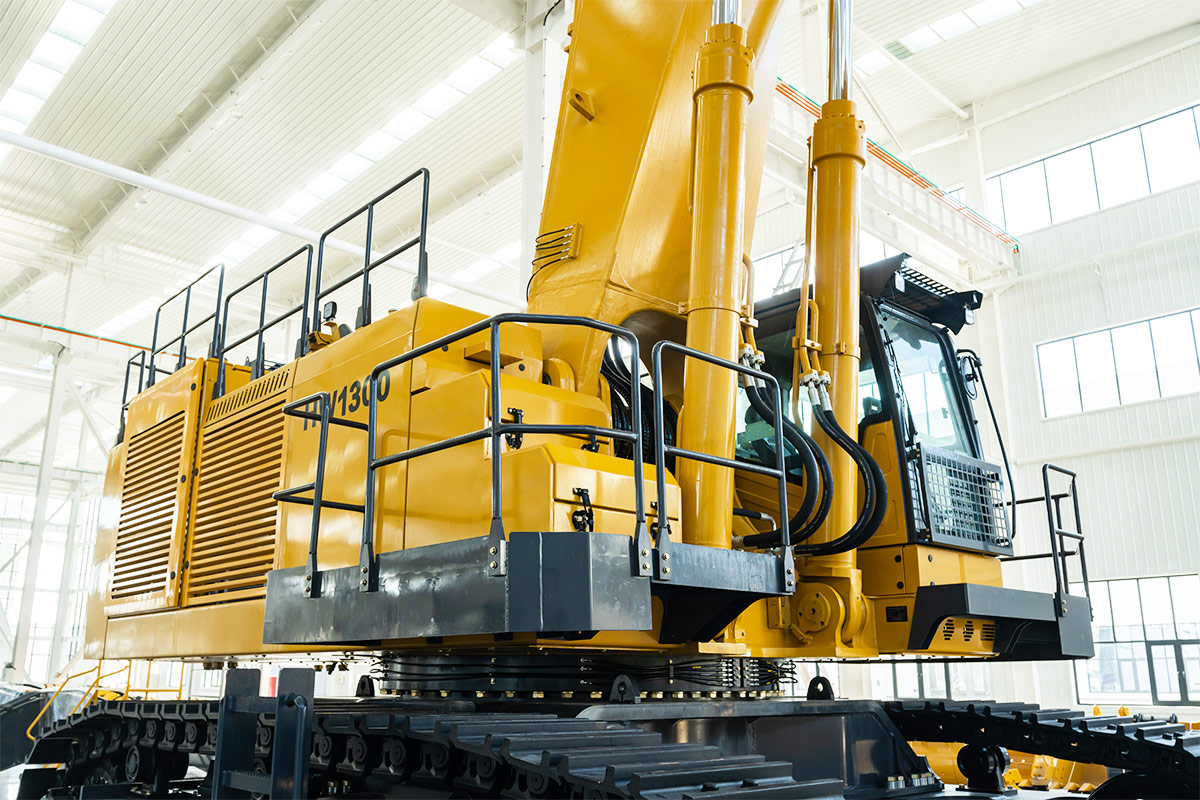

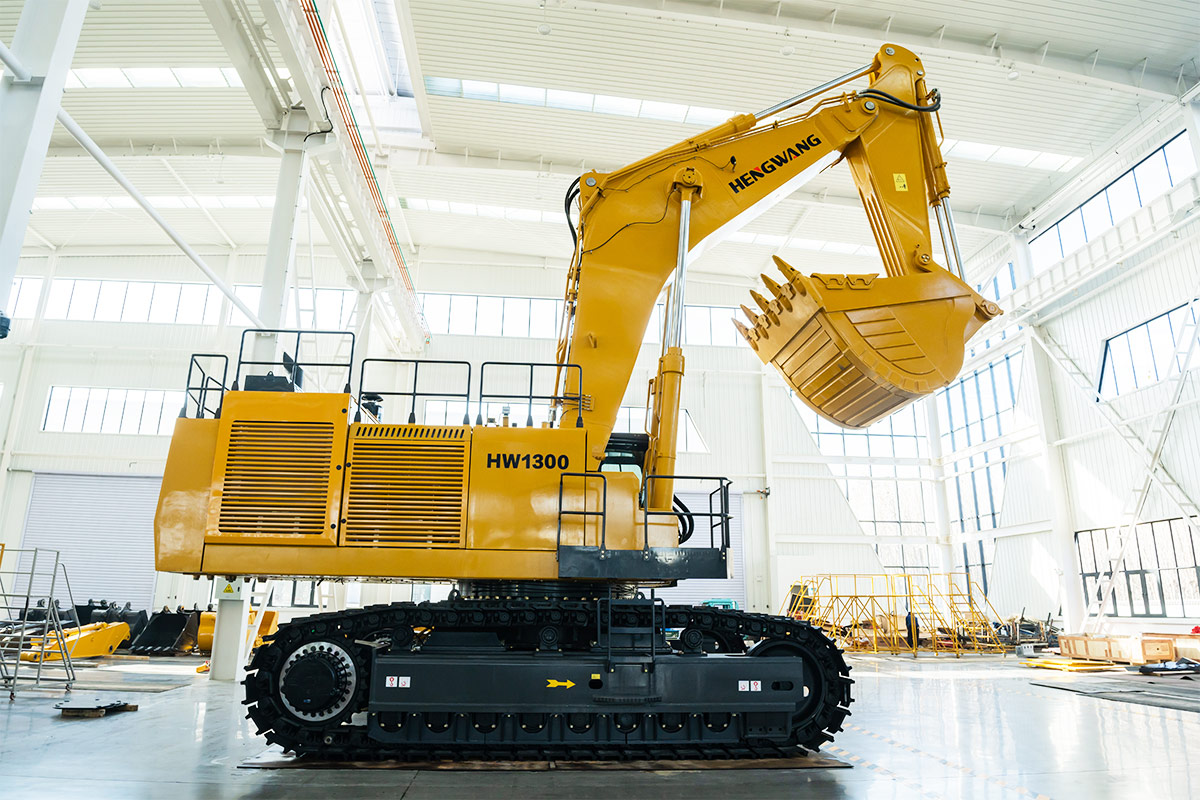

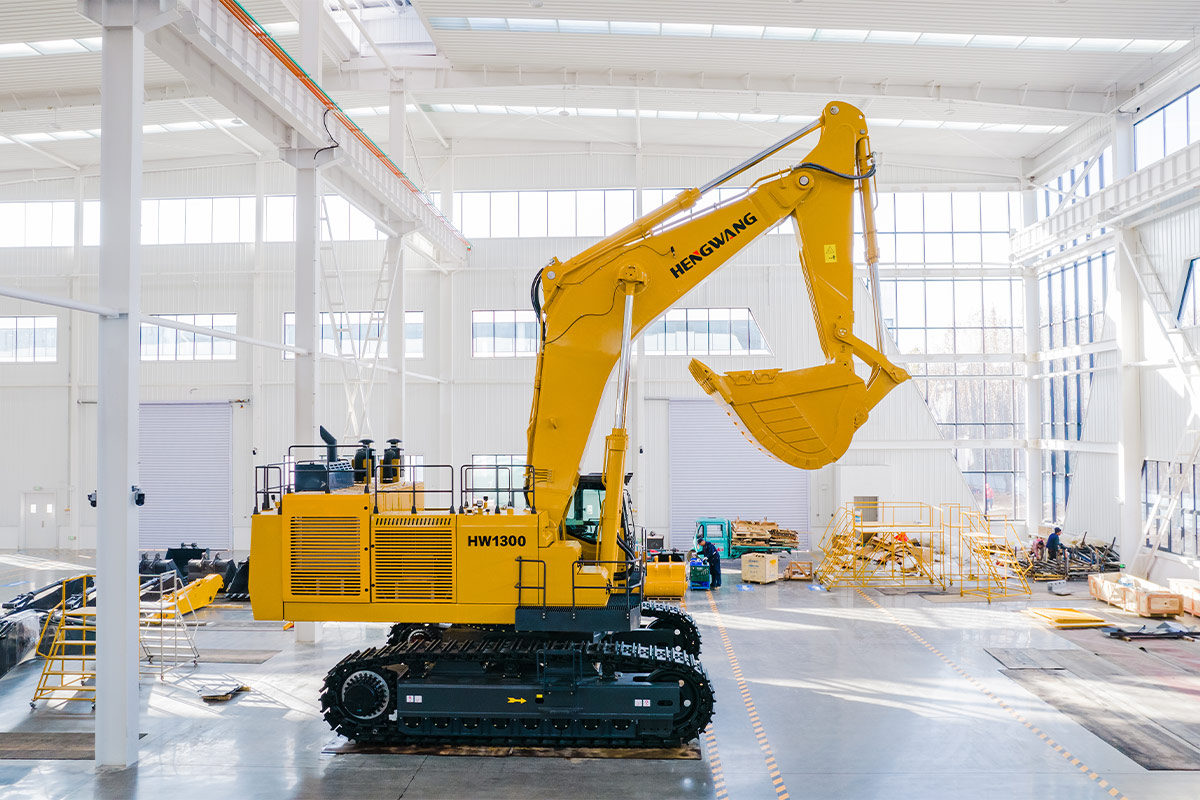

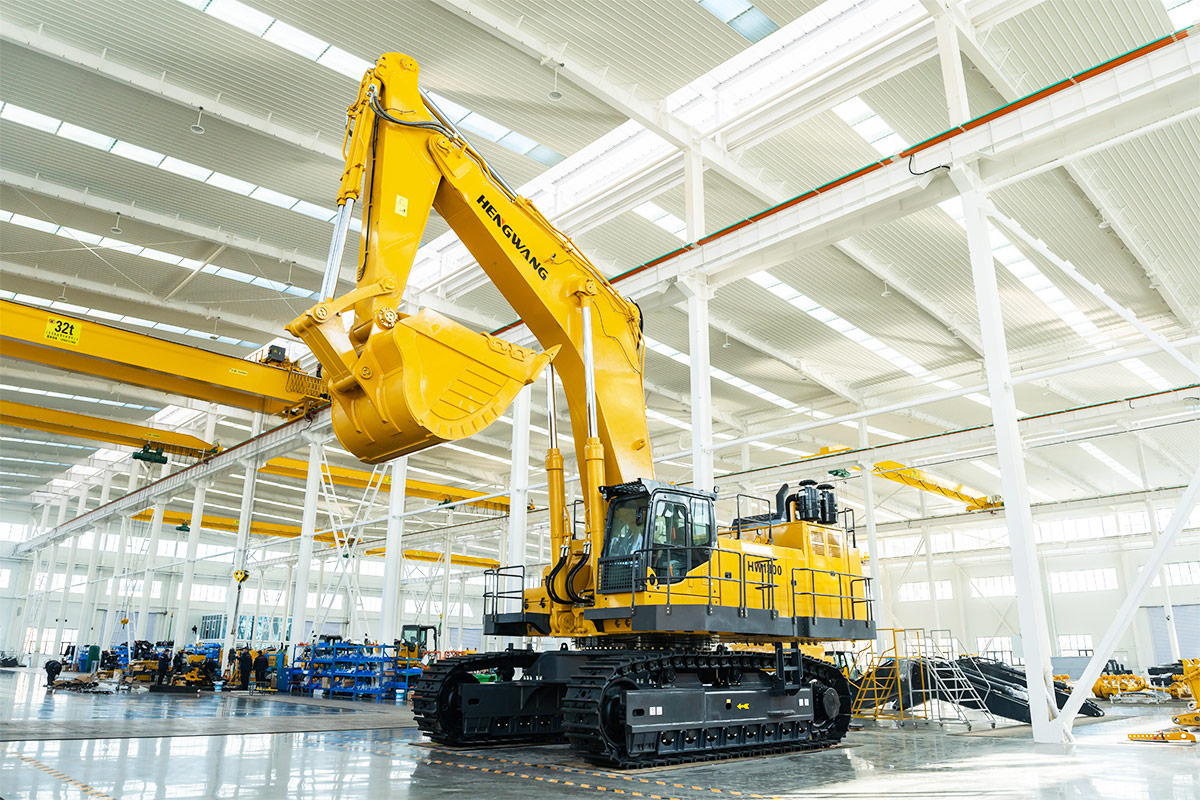

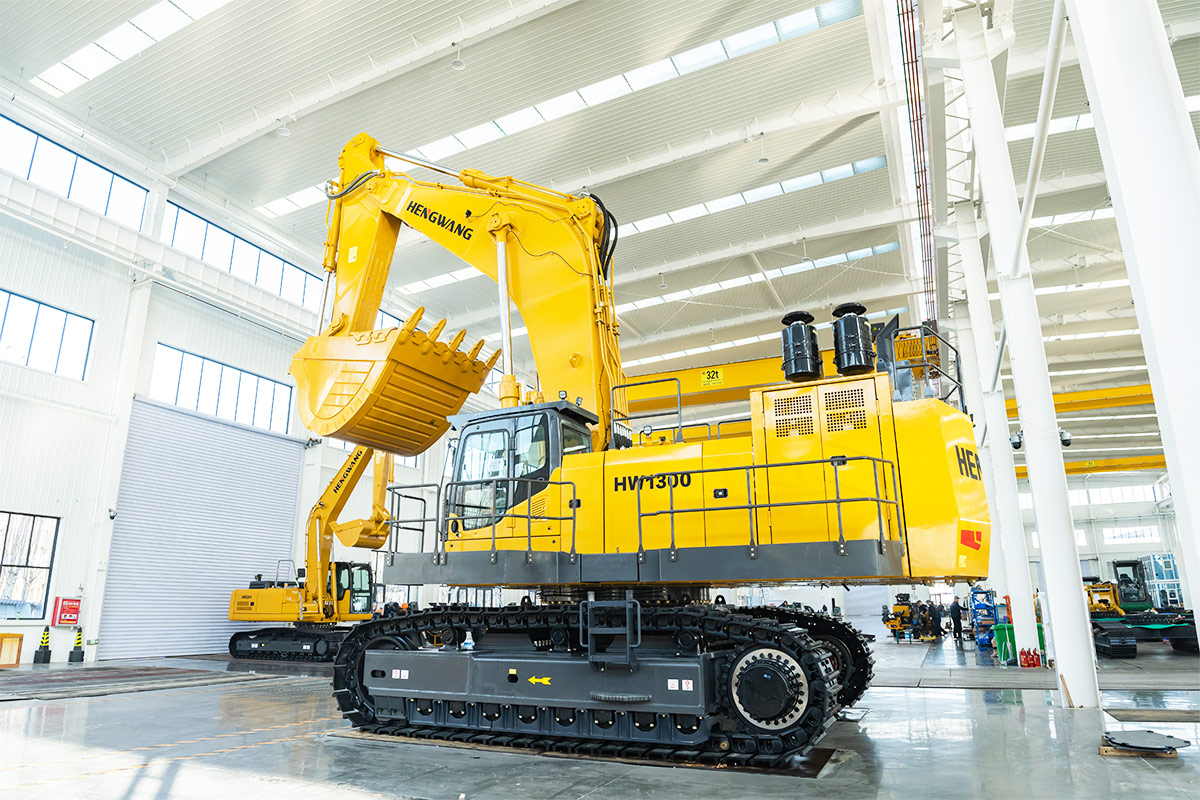

This product is a new generation mining excavator meticulously developed by Hengwang Group for the heavy-duty mining sector. It features a high-pressure, high-flow electronically controlled hydraulic system, specifically designed for demanding mining conditions such as stone, coal, and metal operations.
Power System: The machine is equipped with a Cummins QSK23 engine, delivering a power output of 567 kW/rpm. With fast dynamic response, it is reliable and durable.
Work Equipment: The structure of the work device is reinforced, with key support areas utilizing integral castings and forgings. The large digging force of the boom significantly reduces welding stress concentration and defects, thereby enhancing the lifespan of the working device.
| Engine | ||
|---|---|---|
| Engine Brand | Cummins | |
| Engine Model | QSK-23 CUMMINS QSK-23 | |
| Type | High pressure common rail, super-charged | |
| No. of cylinder | 6x170x170 | |
| Displacement | 23 | mL/r |
| Power | 567KW/1800rpm | kw |
| Overall dimensions | ||
|---|---|---|
| A. Overall length | 14840 | mm |
| B. Ground contact length (Transpoation) | 6500 | mm |
| C. Overall height (to top of boom) | 6265 | mm |
| D. Overall width | 5570 | mm |
| E. Overall height (to top of cab) | 4120 | mm |
| F. Counter weight ground clearance | 1780 | mm |
| G. Ground clearance | 990 | mm |
| H. Tail wing radius | 4900 | mm |
| I. Wheelbase | 5000 | mm |
| G. Track length | 6425 | mm |
| K. Track Gauge | 3900 | mm |
| L. Track width | 4600 | mm |
| M. Shoe width | 700 | mm |
| P. Distance from swivel center to tail | 4820 | mm |
| Working scope | ||
|---|---|---|
| A. Max. digging height | 13000 | mm |
| B. Max. dumping height | 8450 | mm |
| C. Max. digging depth | 7900 | mm |
| D. Max. vertical digging depth | 5025 | mm |
| E. Max. Depth cut for 8 feet Level Bottom | 8450 | mm |
| F. Max. digging distance | 14070 | mm |
| G. Max. digging radius at ground level | 13670 | mm |
| H. Radius of gyration | 4900 | mm |
