Bucket capacity: 0.03m³
Maximum Digging Height: 10800mm
Maximum Unloading Height: 7450mm

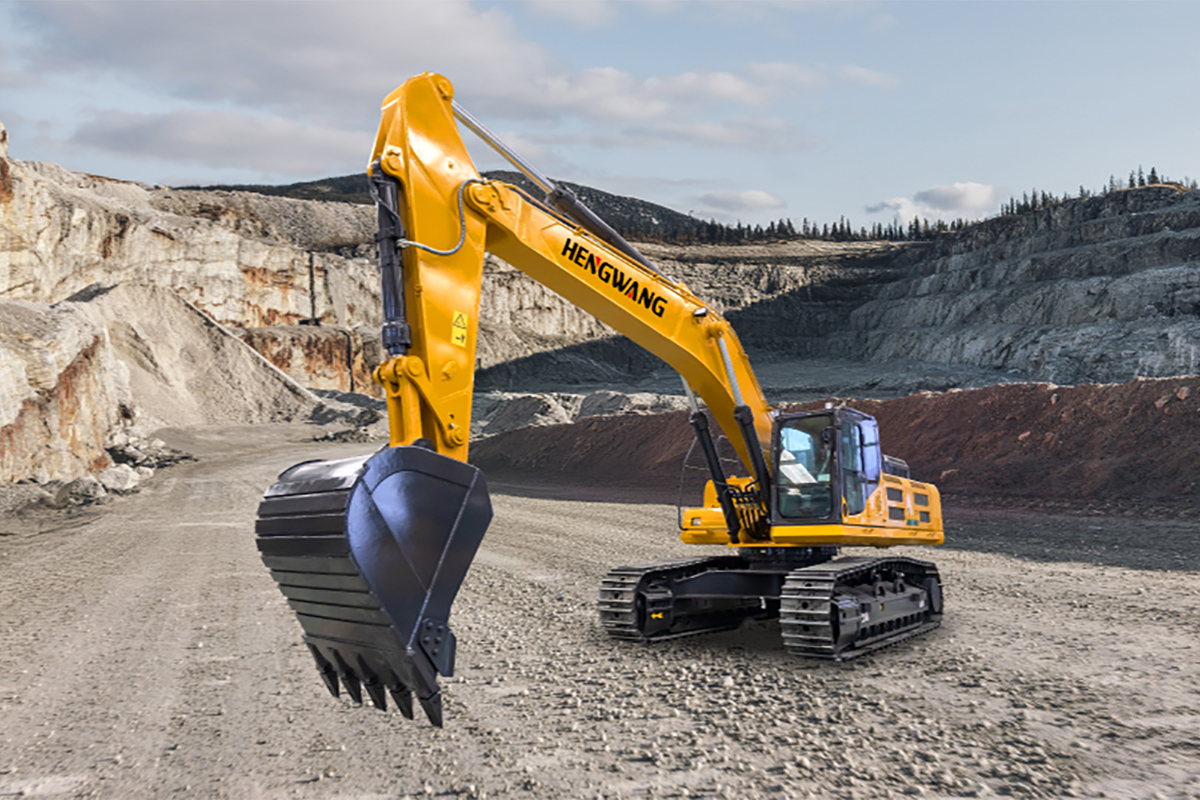

This machine is a crawler excavator specifically designed for heavy-duty mining applications. It is equipped with a Cummins QMS11 engine, with a rated power of 280 kW. The hydraulic system features an electronically controlled main pump and valve, with a main pump displacement of 252 cc. The system has low pressure loss, high efficiency, and low fuel consumption.
The fuel system employs a three-stage filtration system to ensure the engine's fuel cleanliness meets the required standards, guaranteeing long-term engine operation. The excavator is built with a mining-specific chassis design, featuring fully protected idler wheels and high-strength double-tooth plates on the tracks for better traction and enhanced durability.
| Engine | ||
| Engine Brand | Cummins | |
| Engine Model | QSM11-C375XCEC | |
| Type | High-pressure common rail, turbocharged | |
| Number of Cylinders | 6 | |
| Main Pump Displacement | 2*252CC | |
| Power | 280KW/2000rpm | KW/rpm |
| Dimensions | ||
| Overall Length | 11600 | mm |
| Ground Length (Transport Mode) | 5390 | mm |
| Overall Height (to Arm Top) | 3790 | mm |
| Overall Width | 3340 | mm |
| Overall Height (to Cab) | 3293 | mm |
| Counterweight Ground Clearance | 1300 | mm |
| Ground Clearance | 720 | mm |
| Tail Swing Radius | 3840 | mm |
| Tread Width | 4480 | mm |
| Track Length | 5440 | mm |
| Track Gauge | 2740 | mm |
| Track Width | 3340 | mm |
| Track Plate Width | 600 | mm |
| Distance from Swing Center to Tail | 3845 | mm |
| Working Range | ||
| Maximum Digging Height | 10800 | mm |
| Maximum Unloading Height | 7450 | mm |
| Maximum Digging Depth | 7190 | mm |
| Maximum Vertical Digging Depth | 7370 | mm |
| Maximum Digging Depth at 8-inch Horizontal Plane | 6812.5 | mm |
| Maximum Digging Reach | 11625 | mm |
| Maximum Ground Digging Radius | 11400 | mm |
| Swing Radius | 4825 | mm |
