Roller

HW-3T

Operating weight: 3T

Engine power: 25HP

Exciting force: 35KN‎

  • Instructional video
Request a quote

Product album

1
2
3
4
5
6
7

Product Details

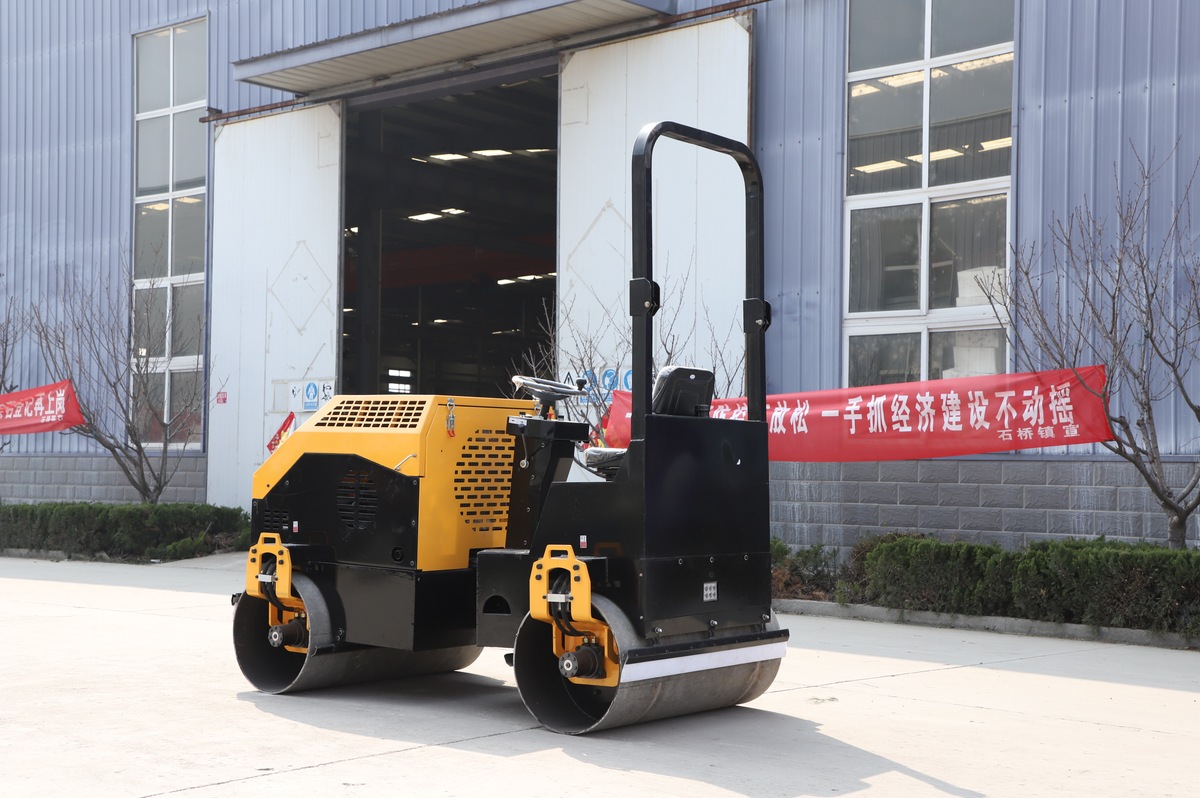

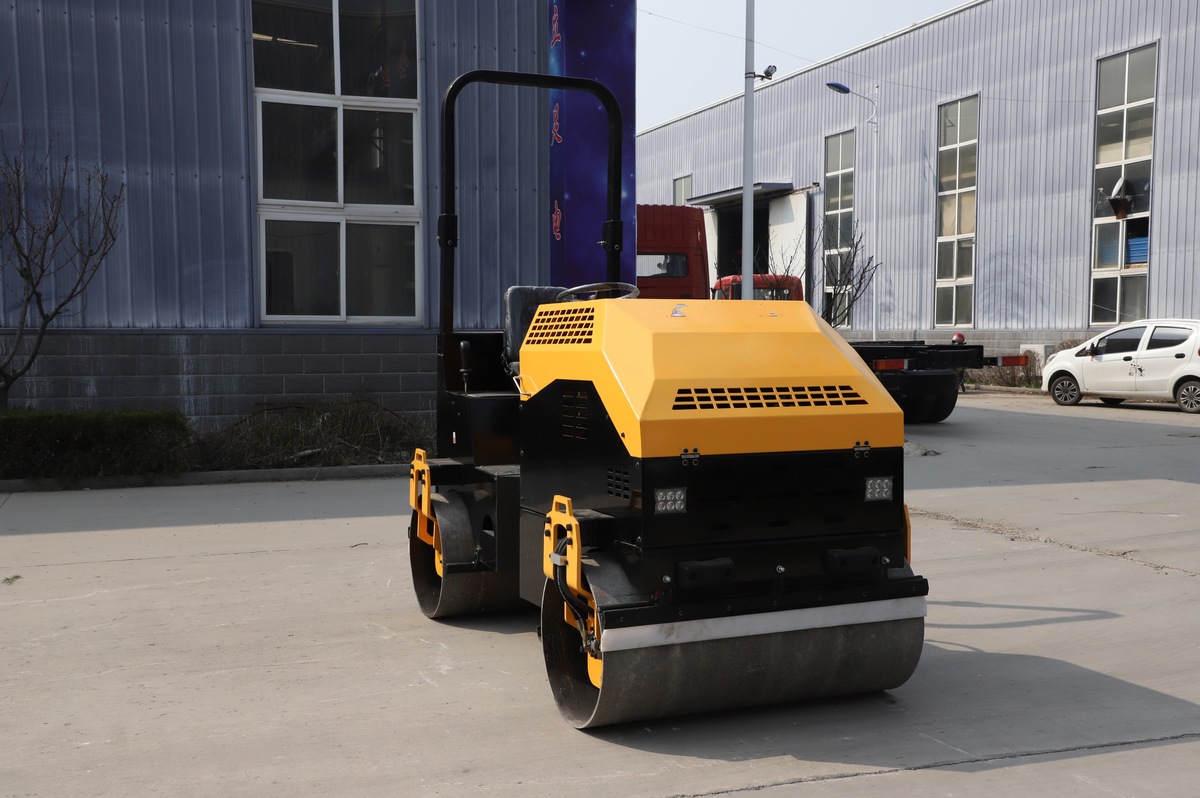

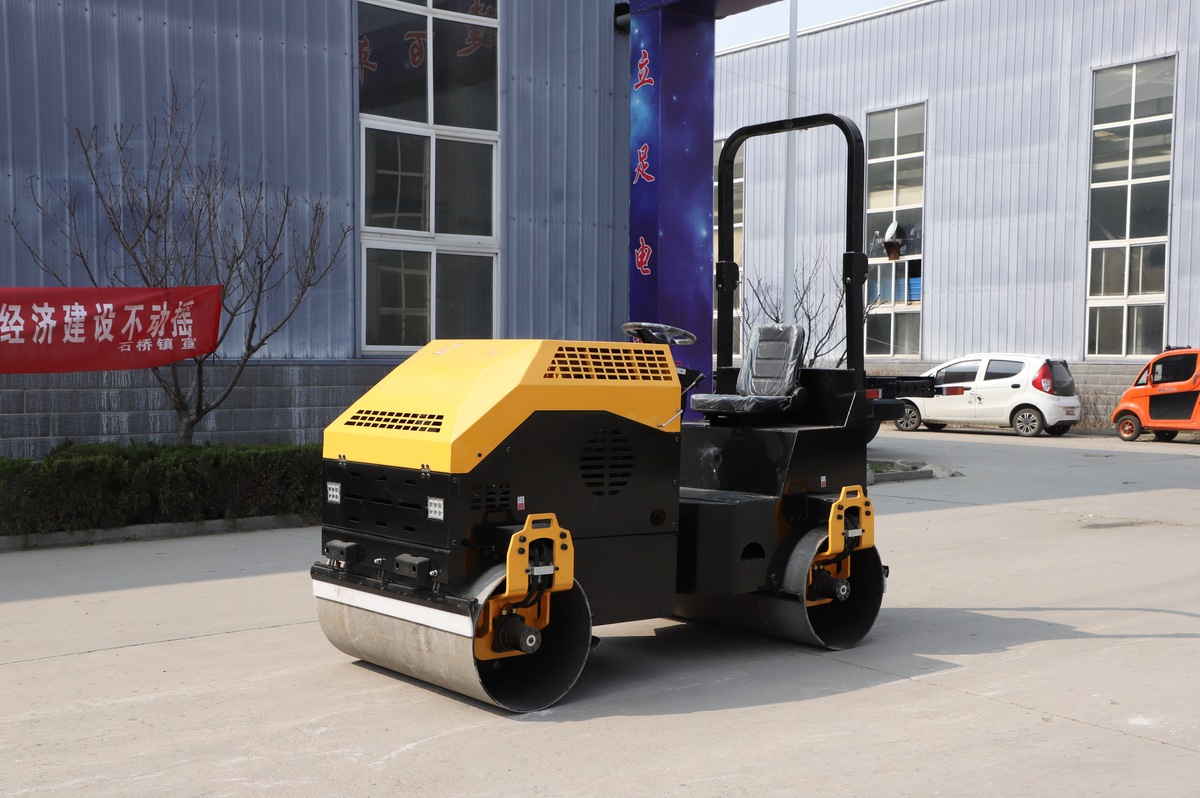

HW-3T Ride-on Road Roller, featuring a small working radius and flexible steering, can operate in narrow areas. It's primarily used for compaction and leveling in trench foundations, roads, sports fields, and also suitable for compacting asphalt surfaces. The 3-ton road roller is a double steel wheel vibratory roller; it incorporates advanced technology from home and abroad, offering powerful performance and superior quality; equipped with original brand engines and brand hydraulic components; has a working weight of 3 tons, with a vibration force of up to 5.5 tons; the machine features hydraulic steering and vibration, making it comfortable and simple to operate; it also has enhanced climbing capabilities.


Product Features:


1. 3-ton road roller is a double steel wheel vibratory roller;

2. Integrates advanced domestic and international technology, powerful and superior performance;

3. Equipped with original brand engines and brand hydraulic components;

4. Working weight of 3000kg, with a vibration force up to 5.5 tons;

5. Features hydraulic steering and vibration.


Main Specifications:


ModelHW-3T
Operating Weight (Kg)3000
Exciting Force (kN)35
Amplitude (mm)0.6
Travel Speed (km/h)0-8
Climbing Ability (%)30
Vibration Frequency (Hz)70
Dimensions (mm)

1300*2700*2400

Steel Wheel Size (mm)

Φ630*1200*2*(T10

Engine Model

Changchai 390 National

Engine Power (HP)

28/39

Static Line Load (N/cm)57
Drive ModeDouble Drive Hydraulic Rotation
Vibration ModeFull Hydraulic
Travel ModeBidirectional Hydraulic Single Vibration
Starting ModeHand Pull/Electric Start
Water Tank Capacity (L)90
Hydraulic Oil Tank Capacity (L)20
Any changes to the above parameters will not be notified separately! For the latest information, please contact our customer service representatives: For inquiries and obtaining a quote
